LAN CABLE FIGURE 8 CROSS WINDING COILING MACHINE

Type: Horizontal
Function: Single heads
PLC Control: Siemens
Min. Order: 1 set
Cable System: 1000W servo motor and reducer
SEND REQUIRY
Product Details

SPECIFICATIONS


Can Be Customized：


ParameterSpecification
PowerAC380V
Direction of operationRight machine (From left direction into wire), the actual customer specified.
RPMMAX.350rpm
Bobbin SizeMAX OD:500mm, ID:180mm(Average diameter arc), width:270mm,(The size range requires special design, and customers can decide it according to their budget)
Drive MotorCoiling system of single axis 2.2K variable frequency motor and inverter
Guide Cable DeviceThe crank mechanism, and the coiling axis synchronization.
Meter DevicePrecise calculation length decoder.
Control SystemSiemens micro-computer programmable controller(PLC)
Operation InterfaceHuman-computer interface
SettingTouch screen, speed control knob, the emergency stop switch





APPLICATIONS & FEATURES


Applications:

Ideal for coiling network cables, coax, audio/data cables into uniform circles. Integrates seamlessly after cable extrusion lines for automated coiling and boxing. Supports LAN cable making machine workflows.


Features:

Auto-Guard Ring System - Eliminates manual handling of protective discs

PLC Precision - Ensures perfect sleeve-compatible center holes

Labor-Saving Design - Reduces operators by 60% vs traditional machines

Zero Downtime - Uninterrupted production during reel changes

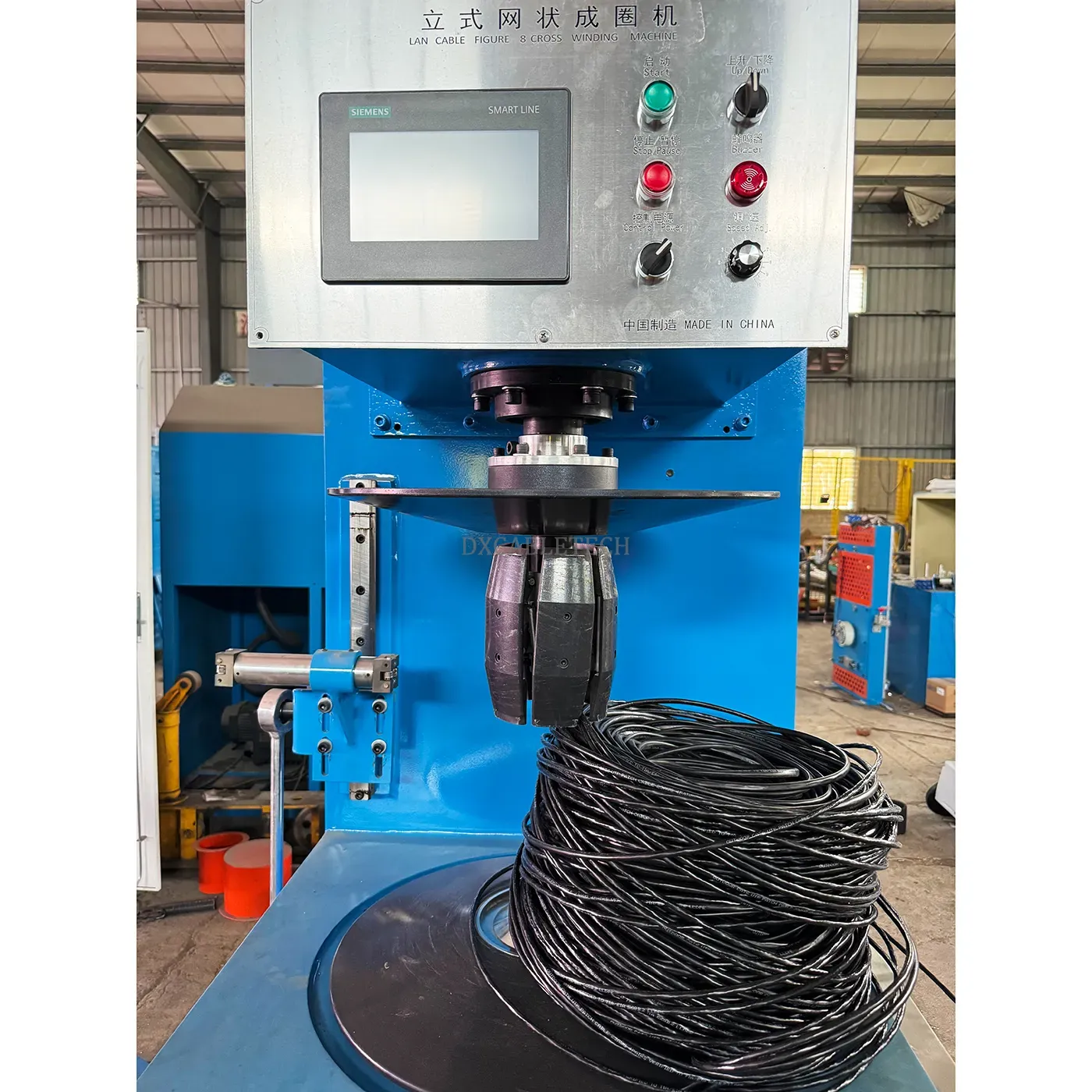

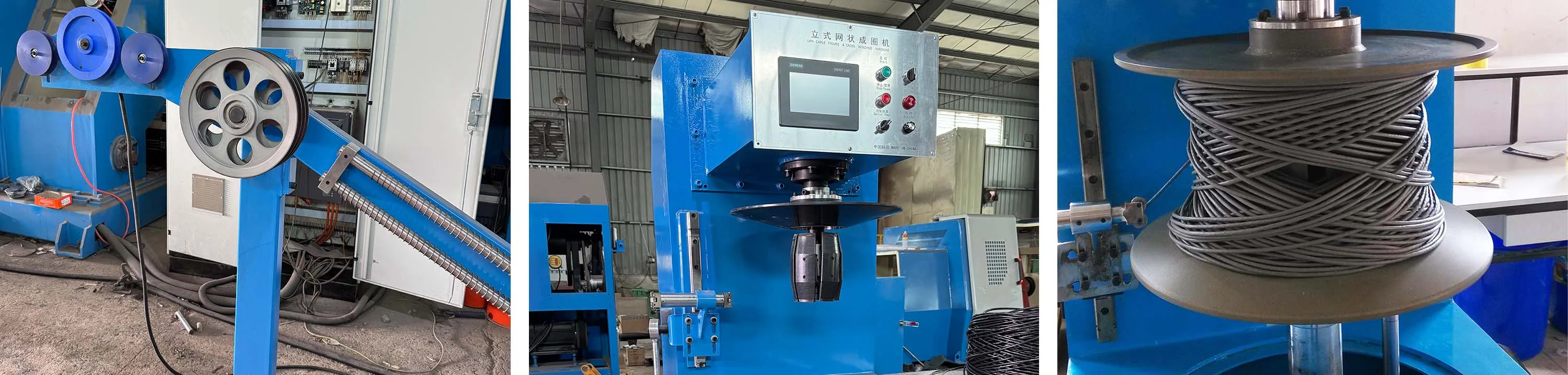

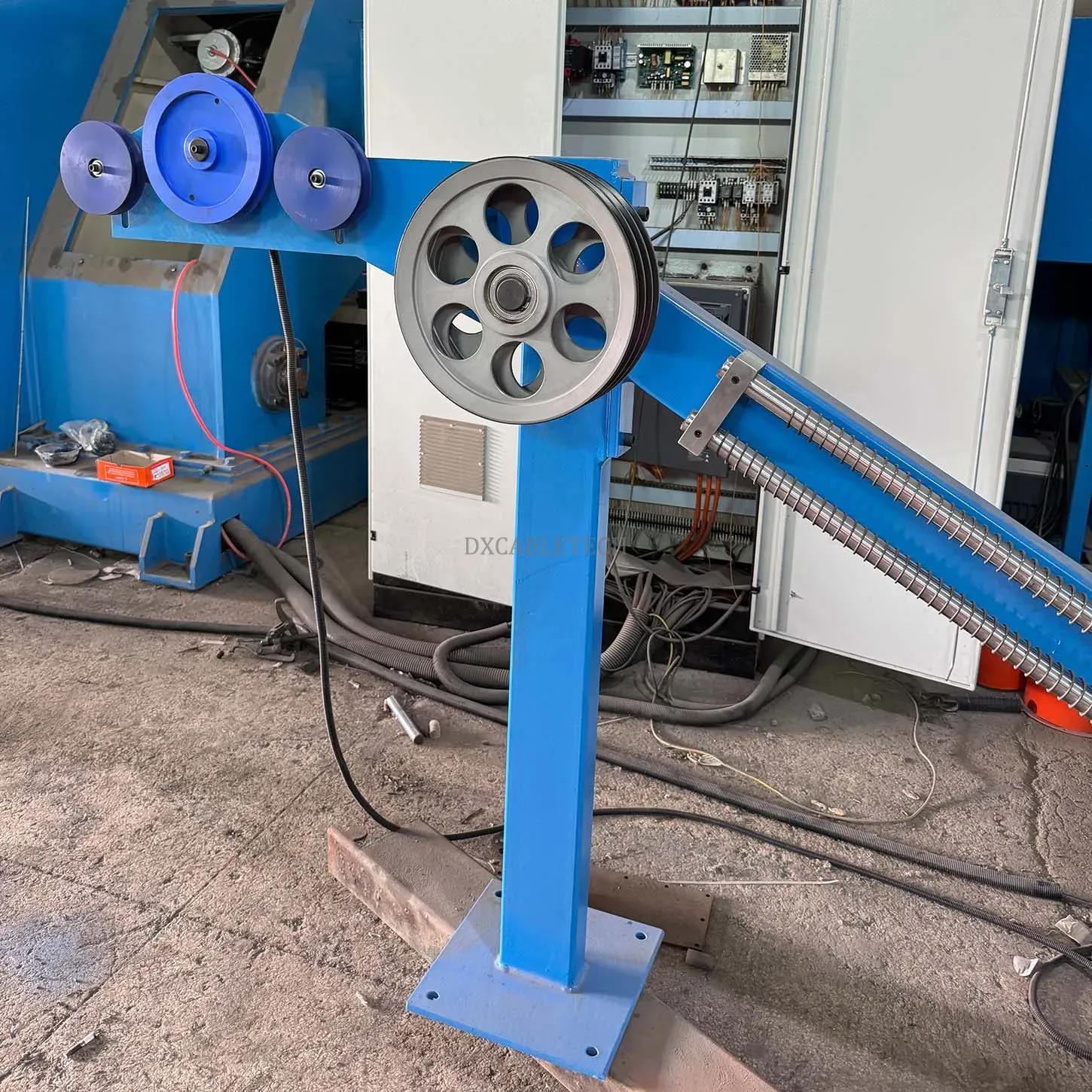

Three detailed views of a LAN Cable Figure 8 Cross Winding Coiling Machine: Top: A close - up shot of a metallic reel with a LAN cable wound in a figure - 8 pattern, set against the machine’s blue frame, highlighting the neatly intertwined wire layout. Middle: A full view of the machine featuring a blue metal structure, a control panel with a digital screen and control buttons for automated figure - 8 winding operations, along with the reel - mounting assembly. Bottom: A side view showcasing the drive pulley, wire - guiding rollers, and the blue framework, illustrating the power transmission and wire - directing mechanisms that enable precise figure - 8 cross - winding.




OUR SERVICE


Provide Free Pre-sales Training:

We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.


Customer On-site Installation Guide:

The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.


After-sales Service Content Details:

We support the After-sales in response quickly, to complete the delivery.

Free service guarantee period: 12 months from the date of shipment (except for wearing parts).

We will charge you for travel fees and other costs.

If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.



Click here to find out more about different types of Featured Products
