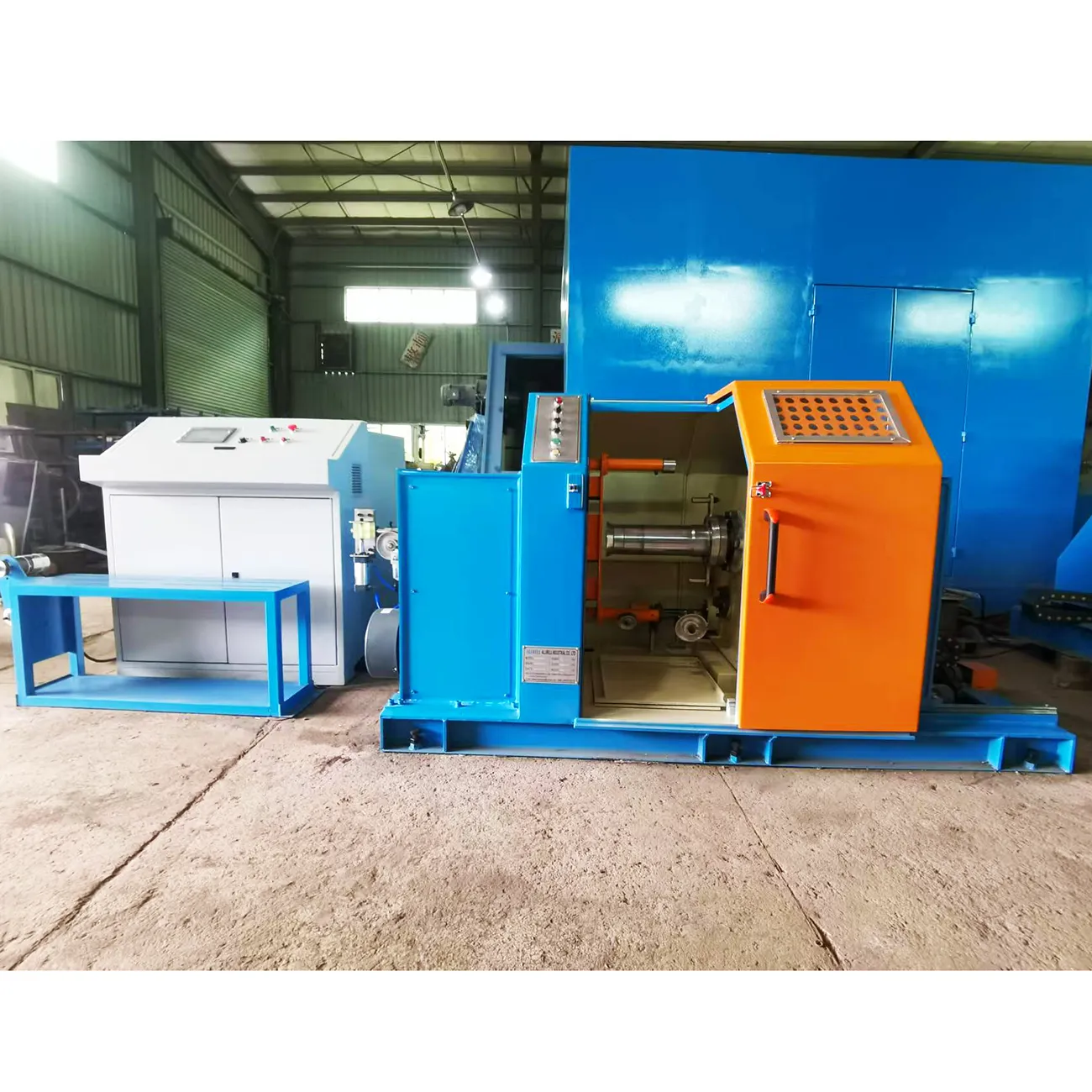

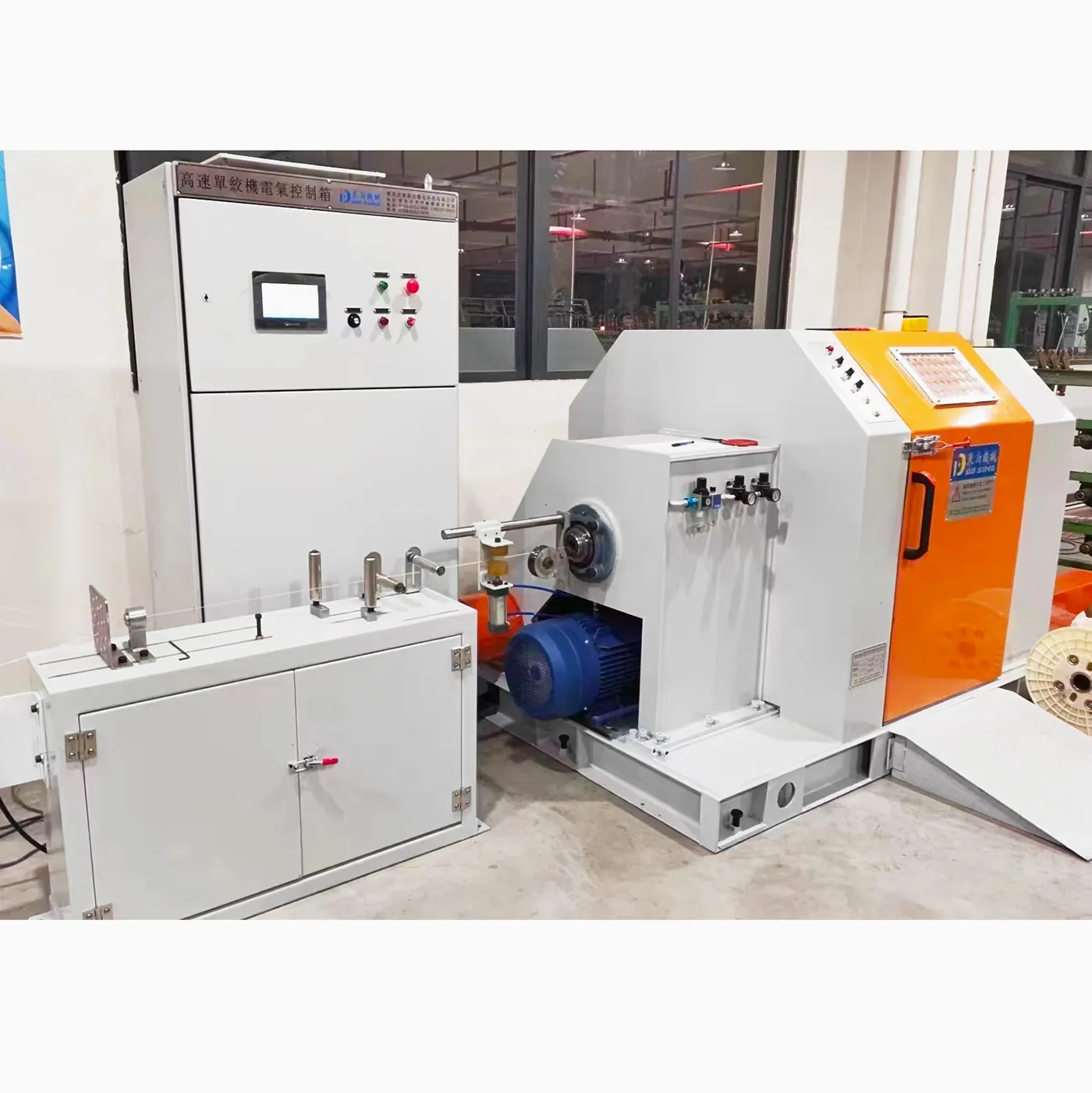

APPLICATION & FEATURES
Application:
Multi-core cables (HDMI/data/automotive/network cables), can be used with synchronous belt (constant tension active vertical wrapping) or passive side wrapping.

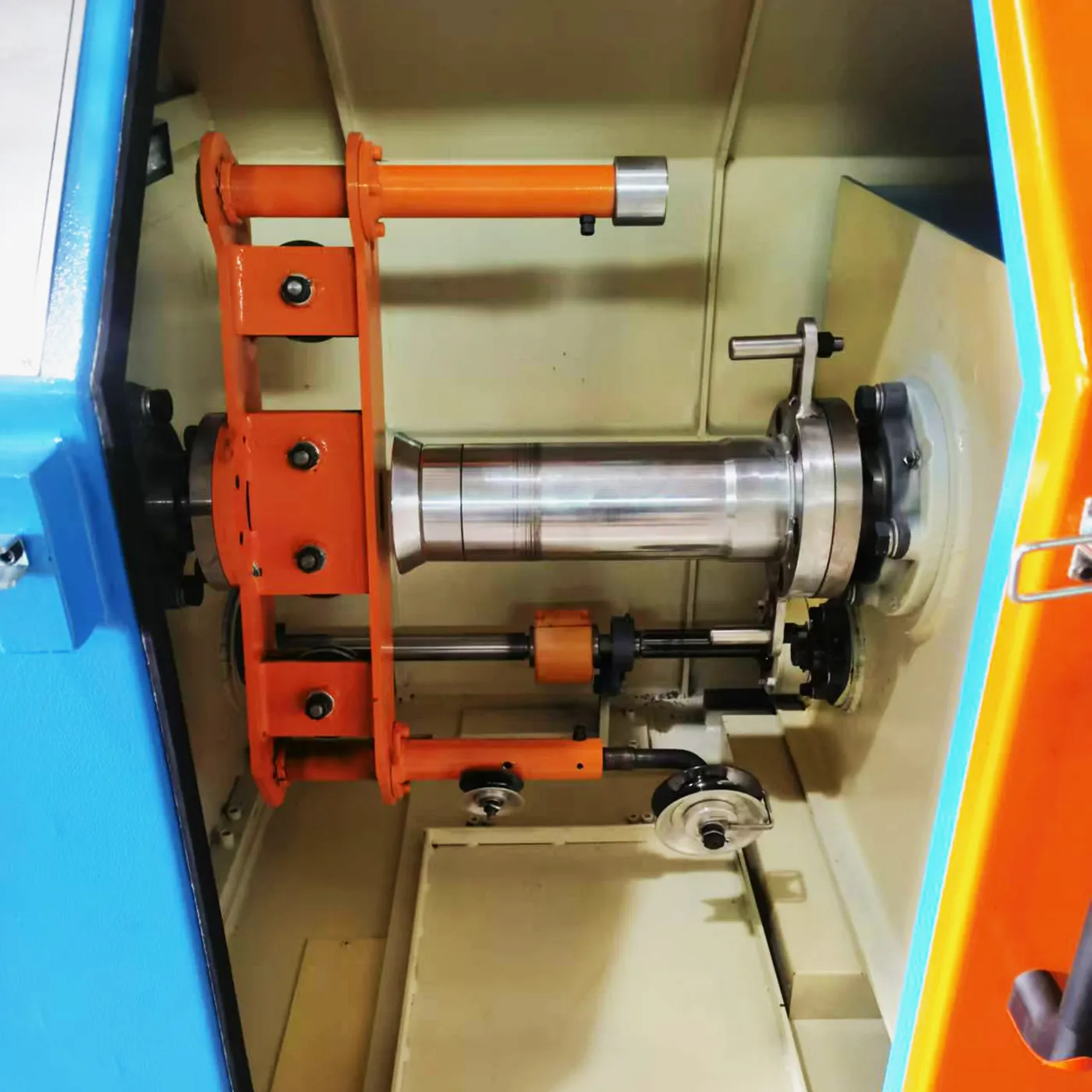

Cantilever design:
Low inertia, high RPM (up to 1000), stable operation.
Precision alignment:
Reduces cable bending via automated lateral positioning.
Smart control:
PLC-programmed twist distance, tension balance.
Efficiency:
Quick loading/unloading, reduced labor.

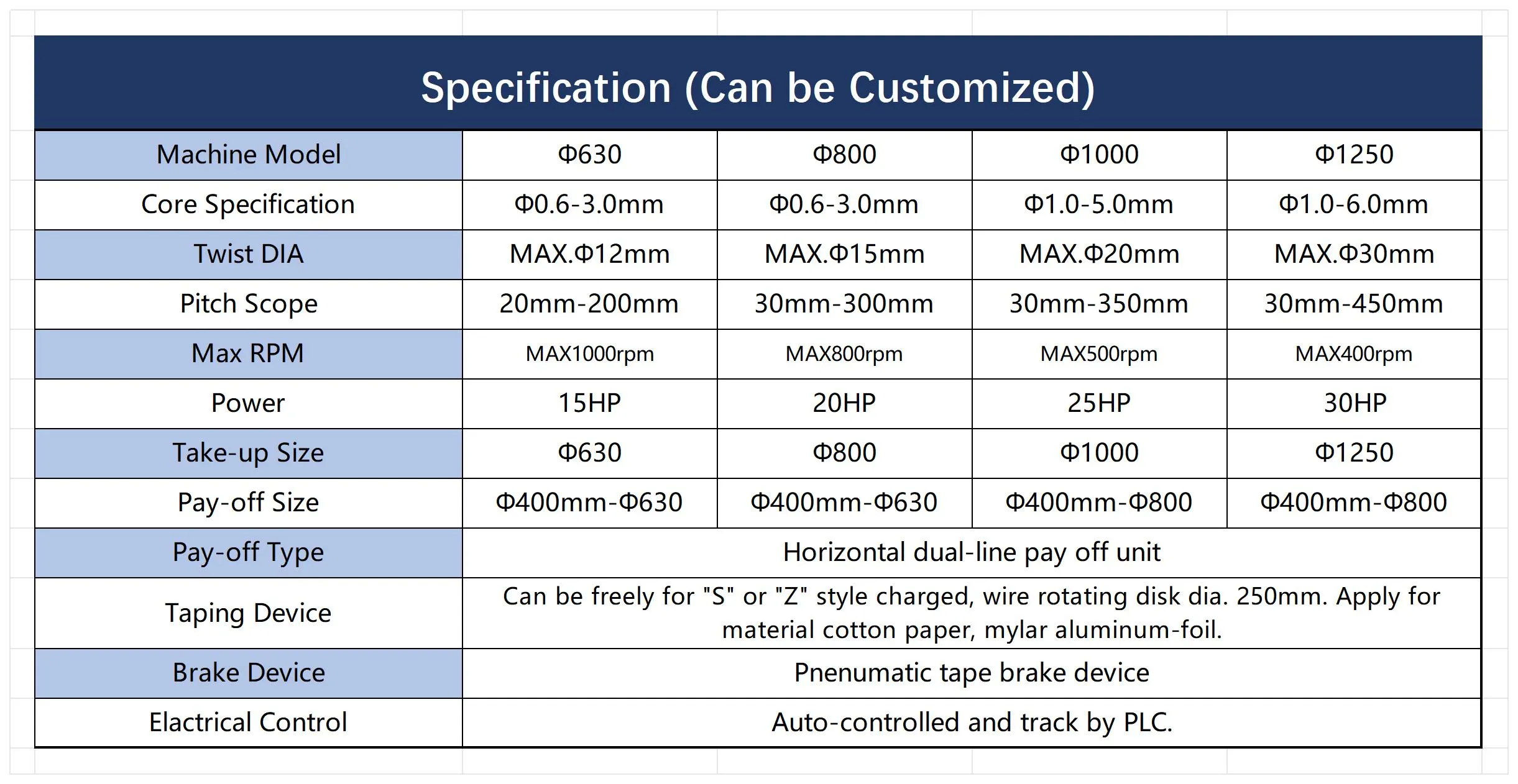

| Specification (Can be Customized) | ||||
|---|---|---|---|---|
| Machine Model | Φ630 | Φ800 | Φ1000 | Φ1250 |
| Core Specification | Φ0.6-3.0mm | Φ0.6-3.0mm | Φ1.0-5.0mm | Φ1.0-6.0mm |
| Twist Diameter | MAX.Φ12mm | MAX.Φ15mm | MAX.Φ20mm | MAX.Φ30mm |
| Pitch Scope | 20mm-200mm | 30mm-300mm | 30mm-350mm | 30mm-450mm |
| Max RPM | MAX 1000rpm | MAX 800rpm | MAX 500rpm | MAX 400rpm |
| Power | 15HP | 20HP | 25HP | 30HP |
| Take-up Size | Φ630 | Φ800 | Φ1000 | Φ1250 |
| Pay-off Size | Φ400mm-Φ630 | Φ400mm-Φ630 | Φ400mm-Φ800 | Φ400mm-Φ800 |
| Pay-off Type | Horizontal dual-line pay-off unit | |||
| Taping Device | Can be freely switched for "S" or "Z" style; wire rotating disk diameter 250mm. Applicable for materials: cotton paper, mylar, aluminum-foil. | |||
| Brake Device | Pneumatic tape brake device | |||
| Electrical Control | Auto-controlled and tracked by PLC. | |||
OUR SERVICES
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, proper maintenance methods and troubleshooting simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support quick response to after-sales service and timely delivery of necessary components.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge for travel fees and other related costs.
If the visa is received on time, our engineers will respond within 24 hours domestically and within 2 weeks overseas.
