PID-36 VFD CONTROL BOARD

Product ID: PID-36 Board (Core recognition)

Function: Active pay-off tension control (Primary use)

Performance: ±0.5% stability (Critical spec)

Integration: VFD integration (Key feature)

Durability: Industrial-grade (Trust indicator)
SEND REQUIRY
Product Details

SPECIFICATIONS



Can Be Customized:

ParameterSpecification
ModelPID-36
Input Voltage24VDC ±10% or 220VAC (Optional)
Control Output0-10V / 4-20mA / PWM
Response Time<5ms
CompatibilityActive Pay-off Stands, Coilers, Capstans
CommunicationRS-485 Modbus RTU (Standard)
ProtectionIP20 (Enclosure); Short-circuit/Overload Protection
CertificationCE, RoHS (Pending customer requirements)



APPLICATIONS & FEATURES


Features:

  • Precision Control
    ±0.5% tension stability | Auto-tuning

  • Universal Integration
    Siemens/ABB/Yaskawa VFDs | Modbus RTU

  • Industrial Toughness
    -40°C to 85°C | IP20 | 100k+ hr MTBF

  • Zero Setup
    Pre-loaded cable profiles

Application :

  • Wire Stranding: Tension-critical unwinding

  • Cable Extrusion: Pay-off/take-up sync

  • Fiber Optics: Delicate material handling

  • Coiling/Bunching: Slack prevention

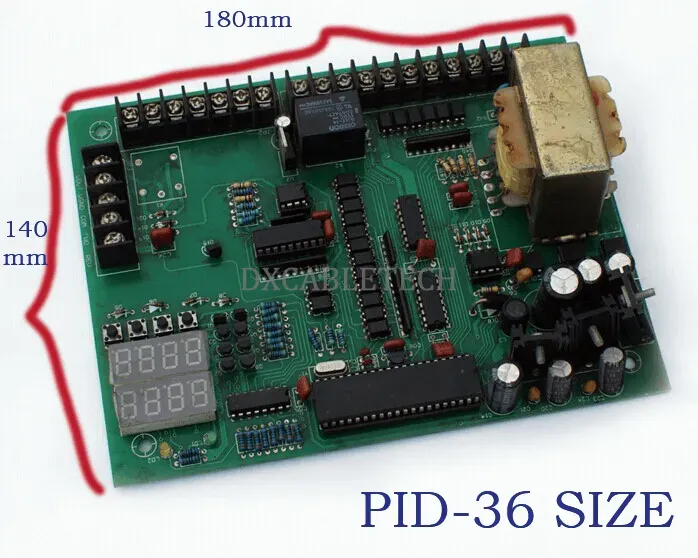

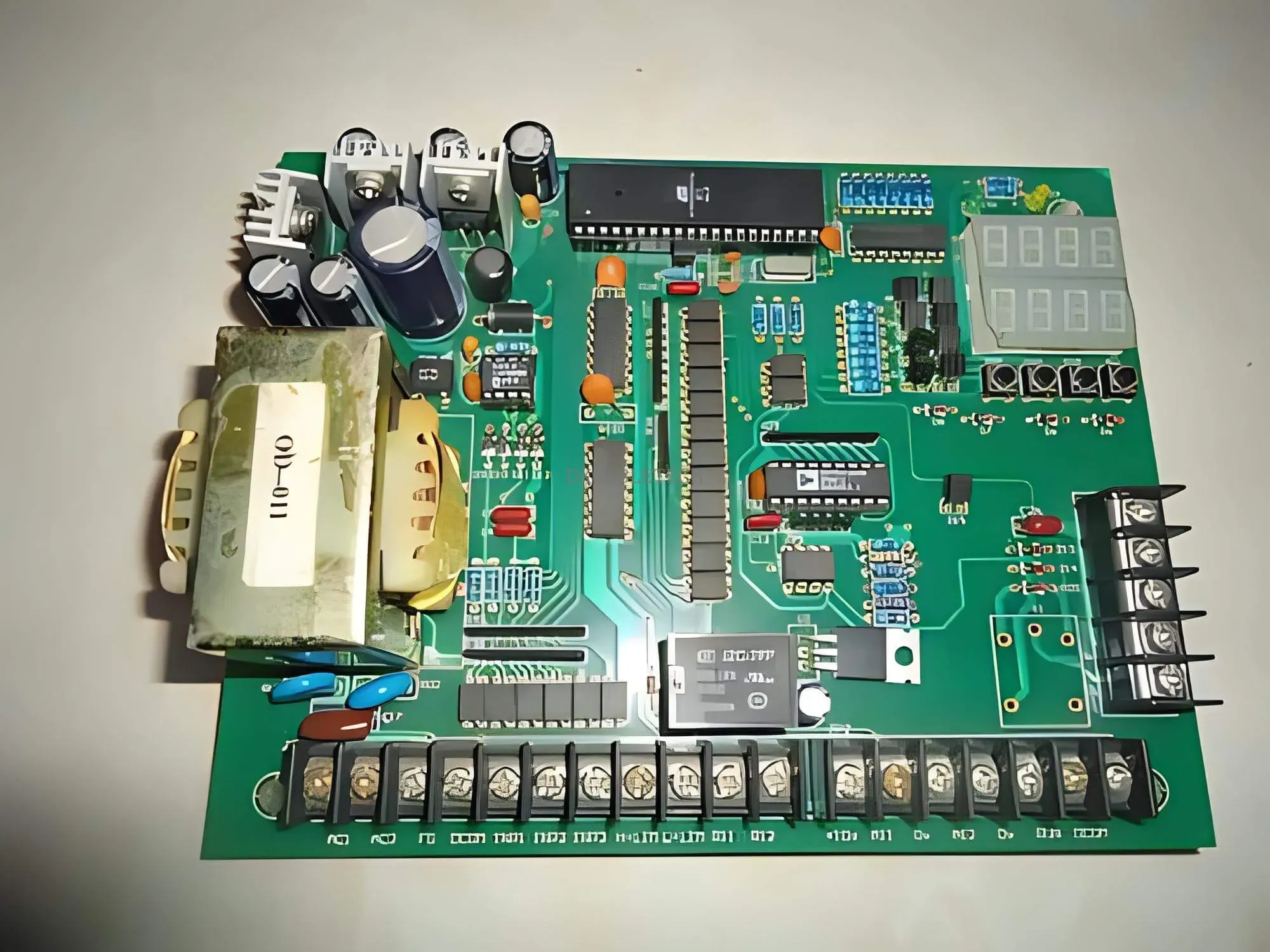

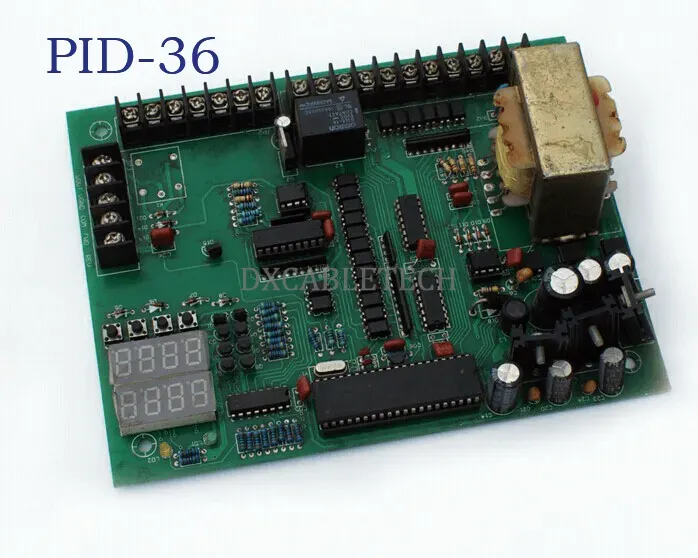

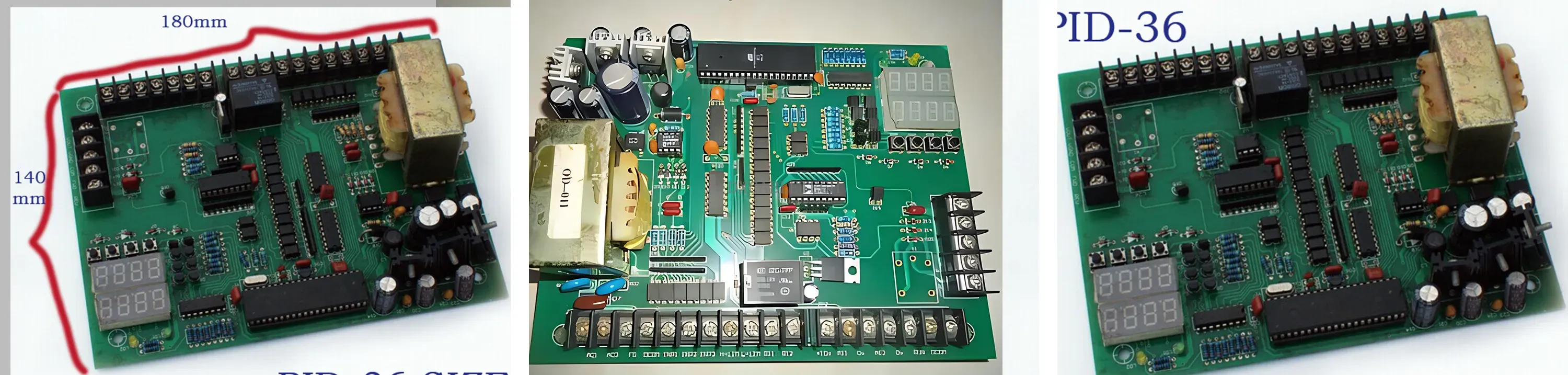

Three detailed views of a PID-36 VFD Control Board: Left: Full - view of the green printed circuit board (PCB) with red - marked dimensions (180mm × 140mm). It displays a digital readout, a transformer, integrated circuits (ICs), and terminal pins, emphasizing the board’s overall layout and physical size. Middle: A close - up of the component - side of the PCB. It highlights densely packed circuitry, including capacitors, resistors, a microcontroller, and solder joints, illustrating the precision - engineered electronics that enable variable frequency drive (VFD) control. Right: An angled view that focuses on the “PID - 36” label, the digital display, and key power and control components. This reinforces the board’s identity as a specialized control module for variable frequency drives.




OUR SERVICE


Provide Free Pre-sales Training:

We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.


Customer On-site Installation Guide:

The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.


After-sales Service Content Details:

We support the After-sales in response quickly, to complete the delivery.

Free service guarantee period: 12 months from the date of shipment (except for wearing parts).

We will charge you for travel fees and other costs.

If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
