SPECIFICATIONS
Can Be Customized：
| Parameter | Value/Description |
|---|---|
| Model | PT-24VA |
| Input Voltage | AC 220V/380V (Dual Mode Compatible) |
| Output Voltage | DC 0-24V Adjustable |
| Adjustment Method | VR1 (Zero Point Calibration), VR2 (Mid/Full Scale Calibration) |

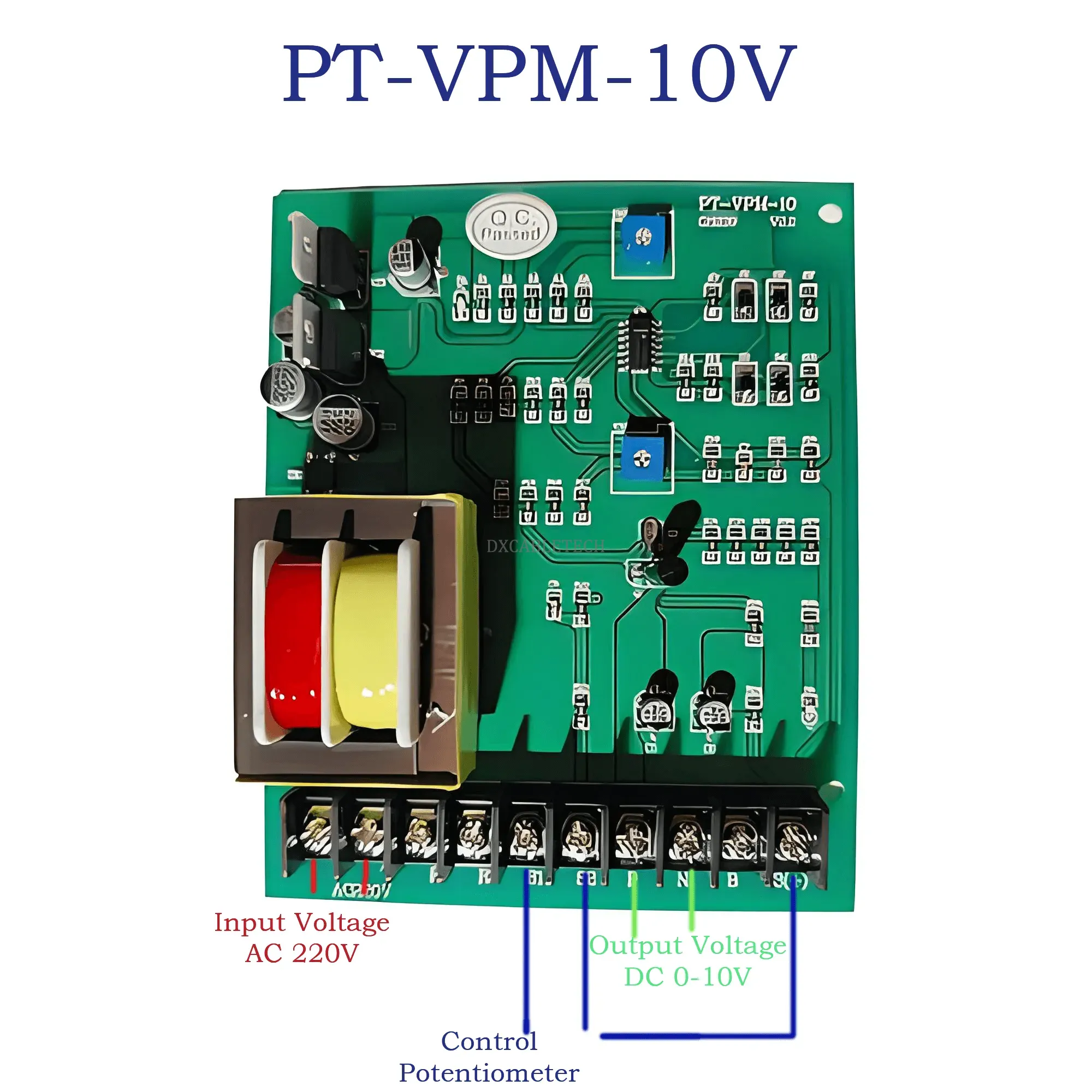

| Terminals | L1, L2 (AC Input); P, N, V+, E1, E2, E3 (DC Output/Control) |
| Protection | Over-Current, Short-Circuit |
| Application | Magnetic Particle Clutch/Brake Control |
APPLICATIONS & FEATURES
Applications:
Precision tension control in wire/cable winding, unwinding & coating lines.
Integrated with magnetic particle clutches/brakes in extruders, spooling machines.
Textile, packaging, and printing machinery requiring dynamic torque adjustment.
Features:
0-24VDC Stepless Output: Precise voltage adjustment via VR1/VR2 potentiometers
EMI/RFI Resistant: Stable operation in high-noise environments
Clear Terminal Marking: Simplified wiring (L1/L2 AC input; P/N/V+ DC output)
Dual Calibration: VR1 sets 0V disengagement; VR2 adjusts 12V/24V output
Compact DIN-Rail Design: Space-saving installation in control panels
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
