In the modern wire processing industry, from cable manufacturing to automotive wire harness production, wire payoff machines are indispensable core equipment. Their performance directly determines the quality of the final product and production efficiency. So, how exactly does a wire payoff machine ensure that wire is paid out evenly and stably, thereby guaranteeing smooth downstream processes? This article delves into the key technological principles behind it.

Why Is Uniform Payoff So Critical?

The payoff process is not simply about releasing wire from a spool. Uneven payoff speed or tension fluctuations can lead to surface scratches, internal structural damage, and even wire breakage or tangling. In applications involving multi-layer winding or simultaneous payoff of multiple wires (such as data cable manufacturing), uneven payoff can cause misalignment of wires and inconsistent insulation thickness, severely affecting the electrical performance and mechanical strength of the product. Therefore, uniform payoff is the first crucial step in ensuring high-quality production.

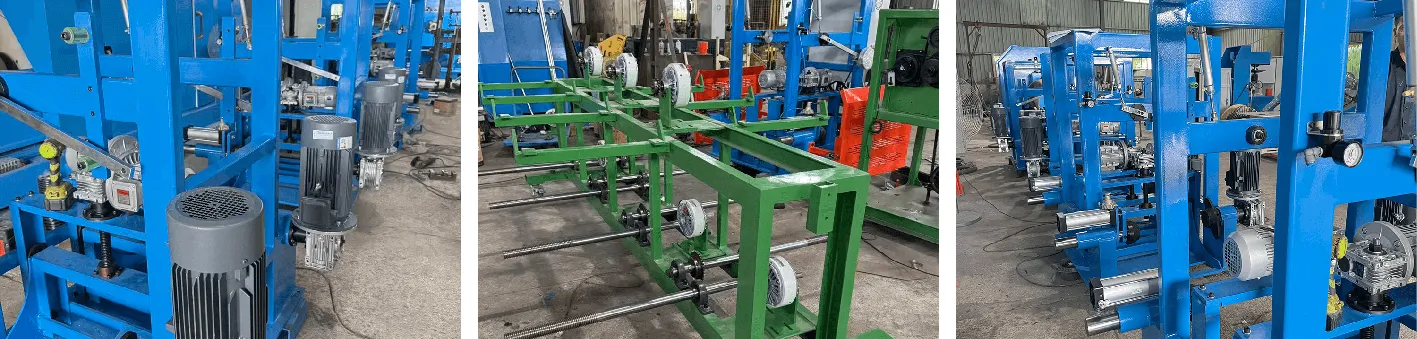

Core Technology 1: High-Precision Tension Control System

Tension control is the core of achieving uniform payoff. The system ensures that the wire tension remains stable throughout the payoff process by monitoring and adjusting it in real time.

Active Tension Control Systems

Modern high-end payoff machines widely use active control systems. These systems collect tension data in real time through tension sensors (such as strain gauges or magnetic particle clutches) installed on guide pulleys and transmit the signals to a PLC (Programmable Logic Controller). The PLC dynamically adjusts the speed of the payoff motor or the braking torque based on the difference between set parameters and real-time data, achieving closed-loop tension control. For example, if excessive tension is detected, the system increases the payoff speed; if tension is too low, it automatically slows down, providing precise feedback. Active control systems offer fast response times and high precision, making them particularly suitable for high-speed and fine-wire production scenarios.

Passive Tension Control Systems

Passive systems provide constant resistance through mechanical or magnetic means. For instance, magnetic particle brakes adjust the braking torque by varying the current to change the magnetic field strength. Their simple structure and lower cost make them suitable for applications with relatively lenient tension requirements, though their control precision and response speed are slightly inferior to active systems.

Core Technology 2: Intelligent Spool Management and Synchronization Control

Precise Spool Centering and Adaptive Adjustment

The concentricity of spool installation is a fundamental factor affecting payoff uniformity. Modern payoff machines use automatic centering devices to ensure the spool is perfectly aligned with the payoff axis, avoiding periodic tension fluctuations caused by eccentric rotation. Meanwhile, as payoff proceeds and the spool diameter continuously decreases, the system automatically calculates and adjusts payoff parameters based on the diameter change, maintaining consistent wire tension from start to finish.

Multi-Machine Synchronization and Integrated Motion Control

On production lines, payoff machines must maintain strict synchronization with downstream equipment (such as extruders or winding machines). Using industrial Ethernet (e.g., EtherCAT) or fieldbus protocols (e.g., PROFIBUS), payoff machines can receive speed commands from the host machine in real time, achieving millisecond-level response and precise following. In applications where multiple wires are paid off simultaneously (e.g., 8-head payoff machines), each payoff unit must also synchronize with others to ensure uniform wire speed and avoid interference. Advanced integrated motion control systems enable seamless coordination between all components in the production line, creating a truly synchronized manufacturing environment.

Core Technology 3: Status Monitoring and Fault Prediction

To prevent issues before they occur, modern payoff machines integrate various sensors and intelligent diagnostic functions.

• Breakage Detection: Photoelectric sensors or mechanical probes continuously monitor the presence of the wire in real-time, triggering an immediate production halt should any breakage occur.

• Wire Speed Monitoring: Encoders measure wire speed in real time and compare it to set values, triggering alarms for deviations.

• Tension Fluctuation Recording: The system records historical tension data, using trend analysis to predict potential issues (e.g., spool deformation, guide pulley wear).

• Visual Human-Machine Interface (HMI): Operators can view key parameters such as tension, speed, and spool diameter in real time and quickly adjust settings.

• Predictive Maintenance: Advanced algorithms analyze equipment performance data to forecast potential failures before they occur, scheduling maintenance during planned downtime to minimize production disruptions.

Conclusion: Technological Integration Drives Industry Progress

Uniform payoff is a systematic engineering task involving mechanical design, electrical control, sensing technology, and other multidisciplinary fields. With the advancement of Industry 4.0, payoff machines are rapidly developing towards intelligence and networking. For example, by integrating AI algorithms, systems can learn the optimal parameters for different wires and processes, achieving self-optimizing control. Using IoT platforms, equipment data can be uploaded to the cloud for remote monitoring and predictive maintenance.

For wire production companies, choosing advanced, stable payoff machines is not only key to improving product quality but also fundamental to building efficient and flexible production systems. In the future, as new materials and processes continue to emerge, payoff technology will continue to evolve, providing solid support for the development of the manufacturing industry.
