SPECIFICATIONS
Can Be Customized:
| Specification | Value/Description |
|---|---|
| Tension Display | 4-Channel Independent Monitoring |
| Control System | Pendulum Arm Slider (Manual) + PID Auto-Tracking |
| Drive Motor | 1/4 HP with Inverter Control |
| Compatible Material | Mylar® Aluminum Foil (Axial) |
| Tape Width | 270 mm |
| Zero-Downtime Design | Quick-change free-standing structure |
| Max. Spool O.D. | 300 mm |
| Tape Core I.D. | 76 mm |
| Number of Heads | 4 (Independent Operation) |
| Application | Cat 6A/7 Data Cable Cabling |
APPLICATION&FEATURES
APPLICATION:
Cat 6A/7 Data Cable Shielding: Optimized for precision wrapping of Mylar®-Aluminum foil shielding onto high-speed data cables.
FEATURES:

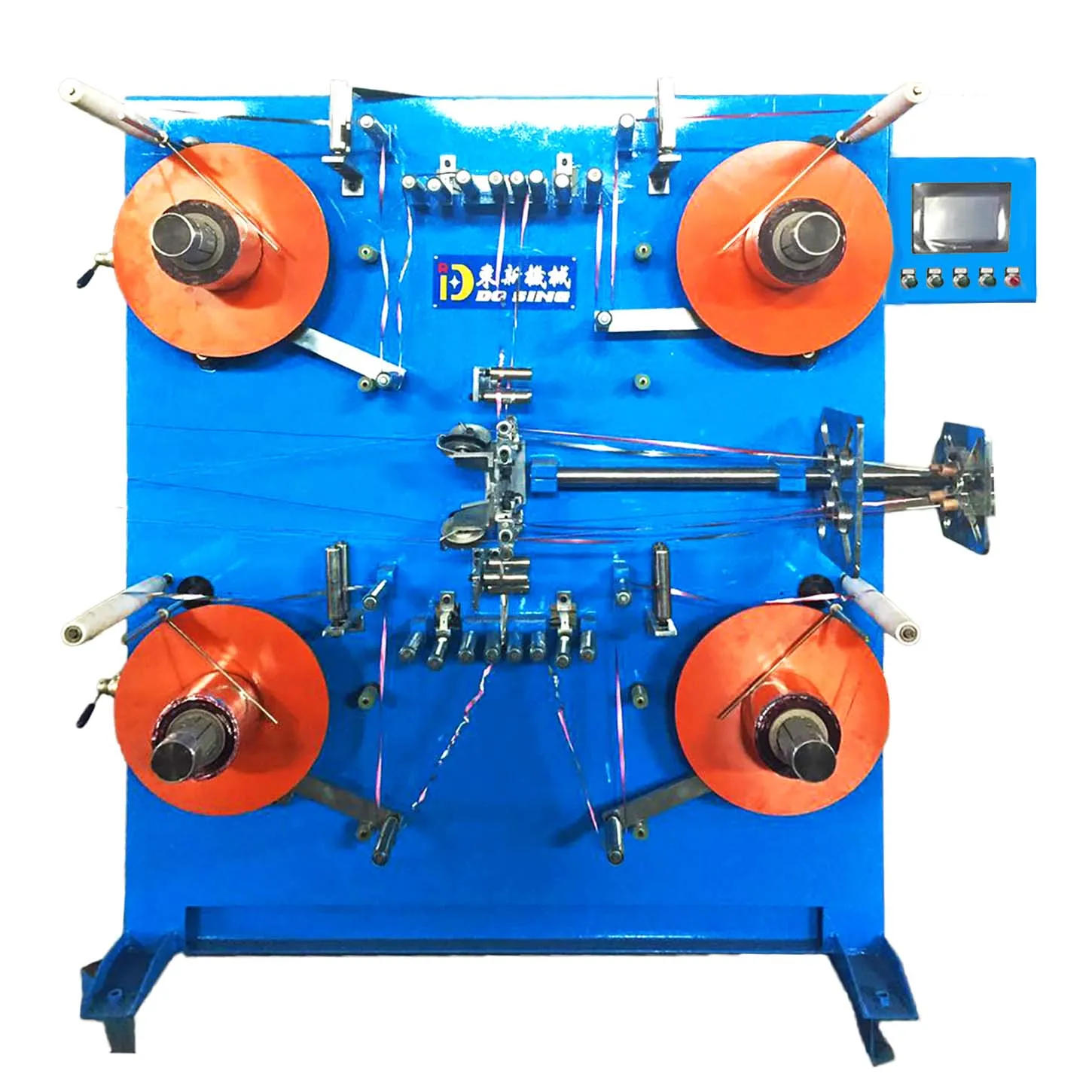

Quad Independent Heads: 4 isolated units with individual tension control
Hybrid Tension System: PID auto-tracking + manual pendulum slider + spool compensation
Material Handling: 76mm core/300mm OD axial spools (270mm width)
Smart Drive: 1/4 HP VFD motor with real-time 4-channel tension monitoring
Control Hub: PLC + 7" HMI touchscreen for automated/manual operation
Zero-Interference Design: Fully isolated heads prevent cross-talk
Quick-Change Structure: Free-standing frame for <5 min spool swaps
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
