SPECIFICATIONS
Can Be Customized:
| Parameter | Specification |
|---|---|

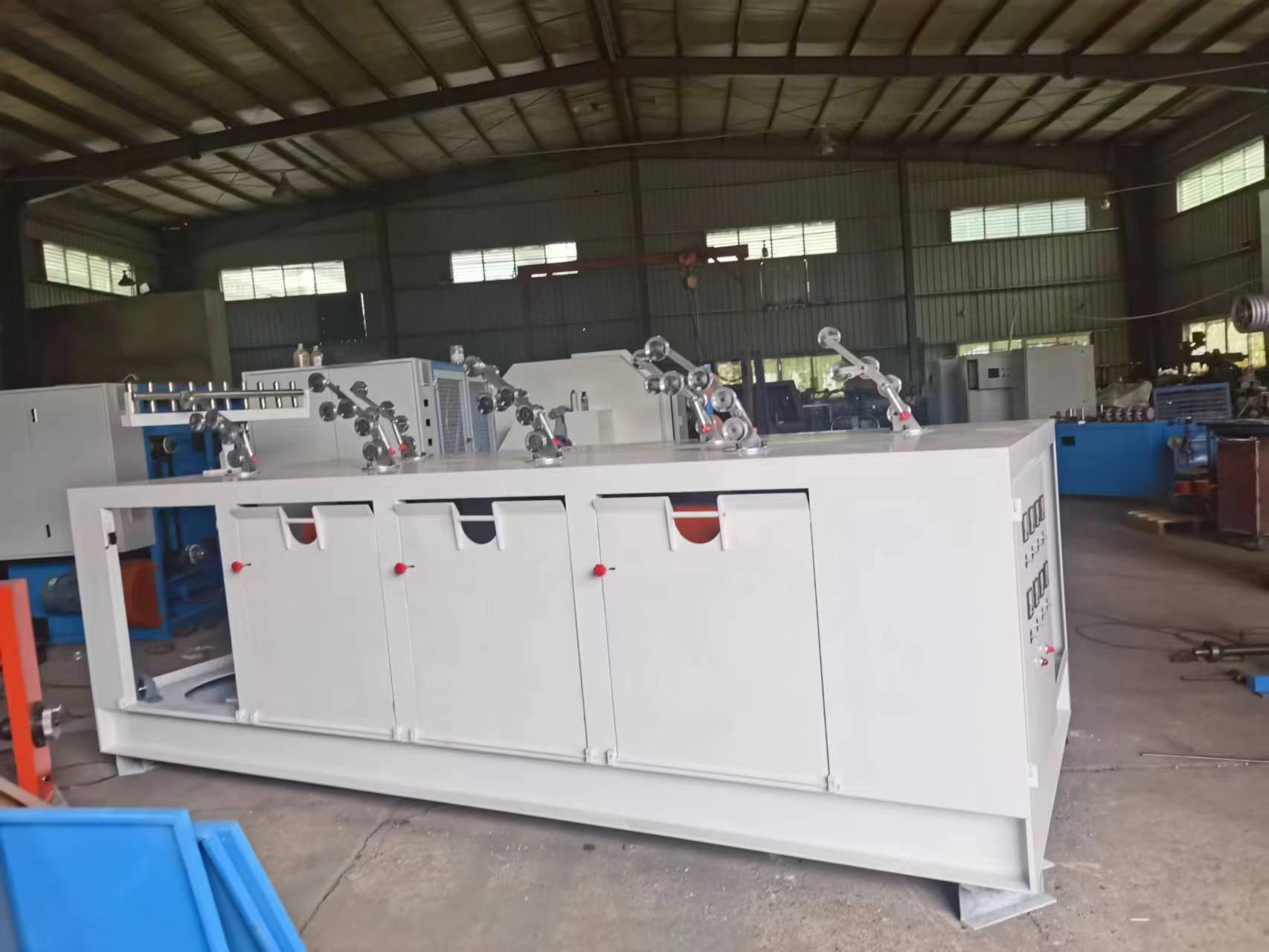

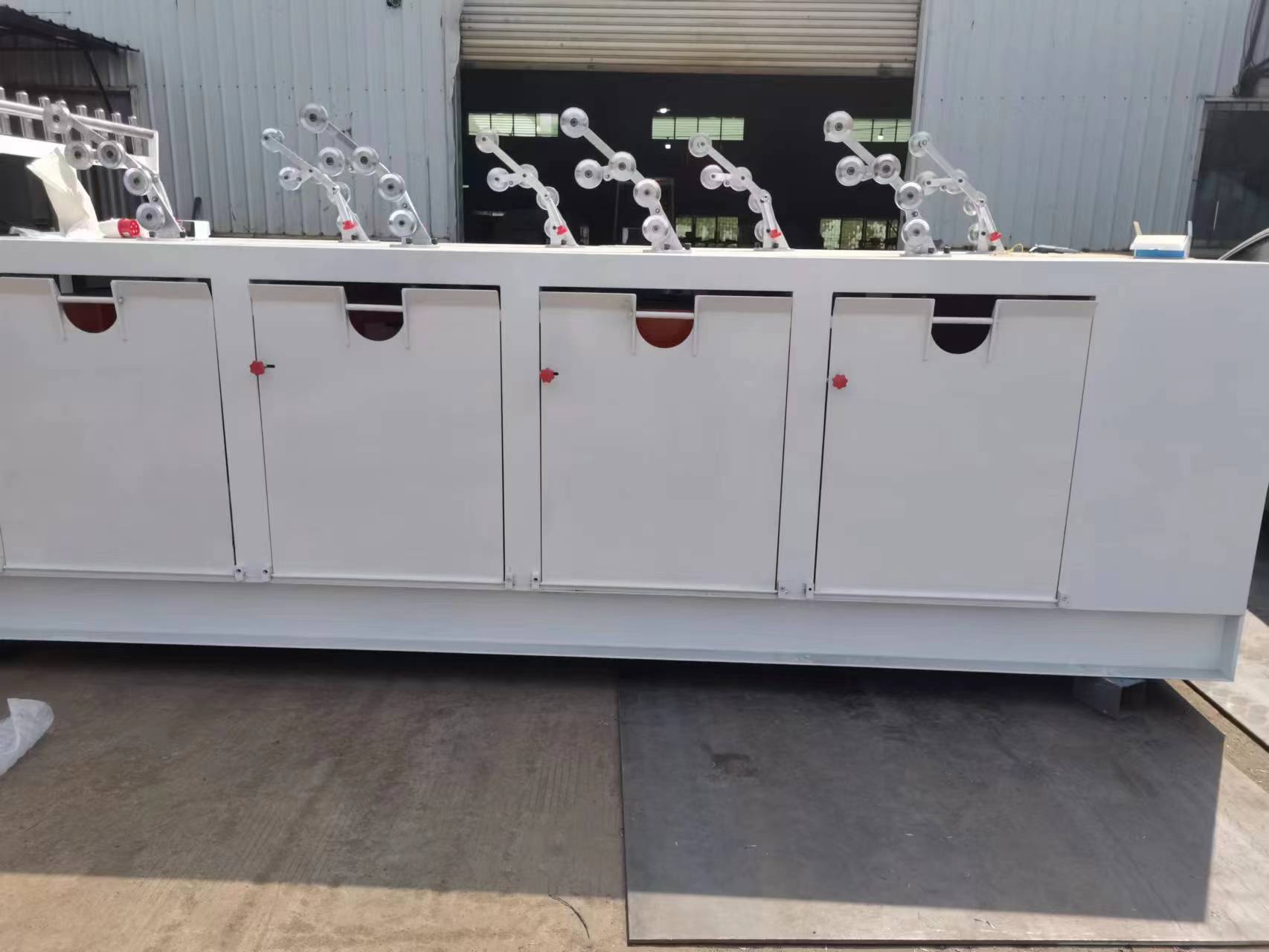

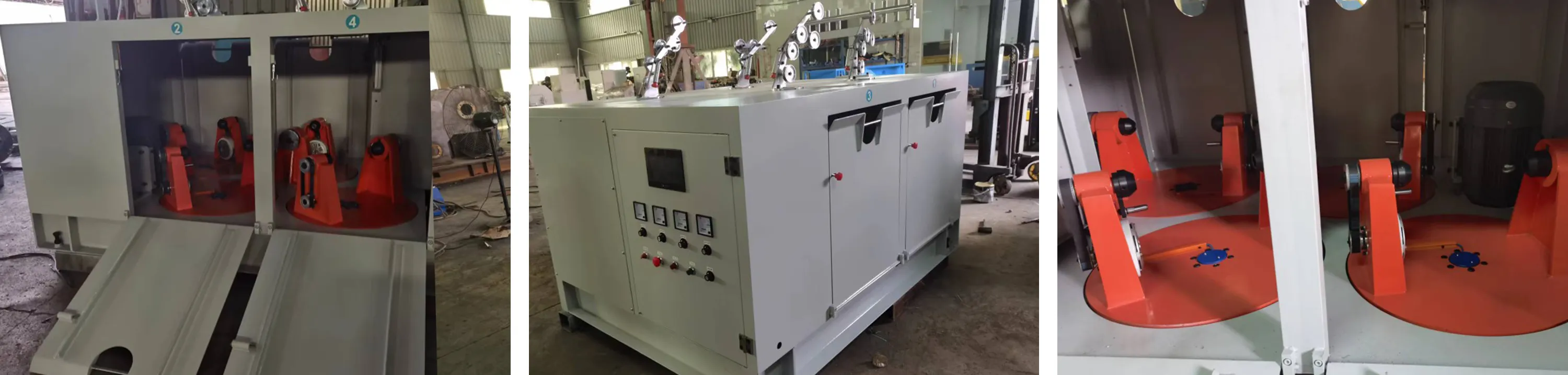

| Model | 500H Horizontal Back Twister (8-head) |
| Power Supply | 380V, 3-phase, 50Hz |
| Max Rotation Speed | 500 RPM |
| De-twisting Rate | 0-100% Stepless Adjustment |
| Wire Compatibility | ∅0.6-4.0mm Flexible Wires (JB/T 6213) |

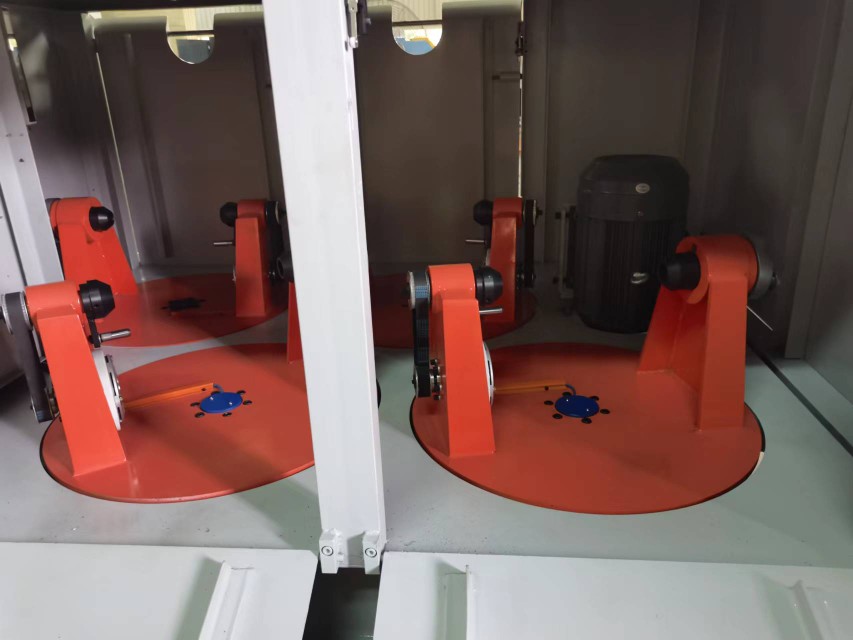

| Tension Control | 1.2kg Single-Axis Magnetic Powder Brake |
| Spool Specification | Φ500×56×300mm (Core ID×Width×Flange) |
| Motor | 5.5kW |
| Noise Level | <85 dB |
| Operation Side | Right-hand (Facing Production Line) |
APPLICATION & FEATURES
APPLICATION：
Data/Comm Cables: CAT6/CAT7 twisted pair de-twisting.
Flexible Control Wires: Robotics/automotive lead wires (IEC 60245).
Specialty Cables: Coaxial cores, shielded flexible cords.
FEATURES：

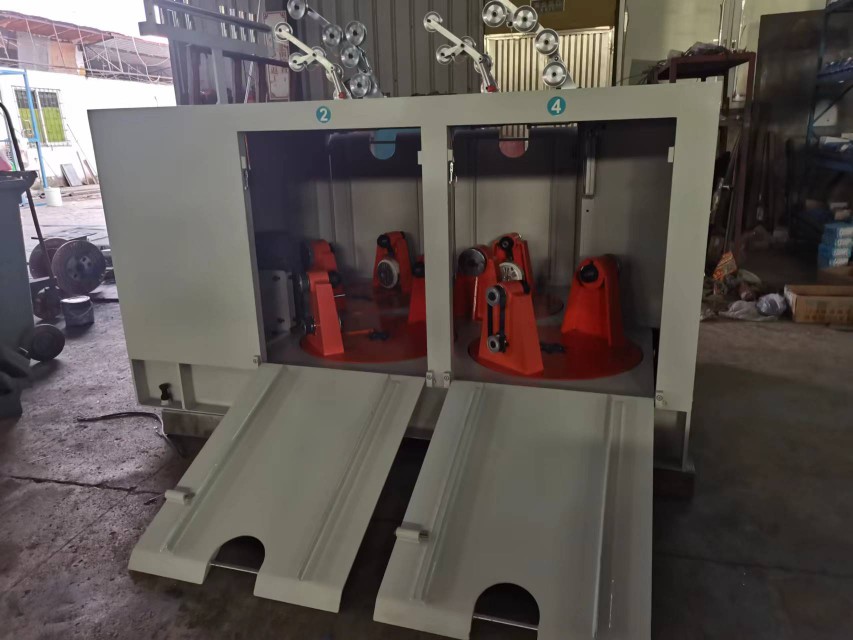

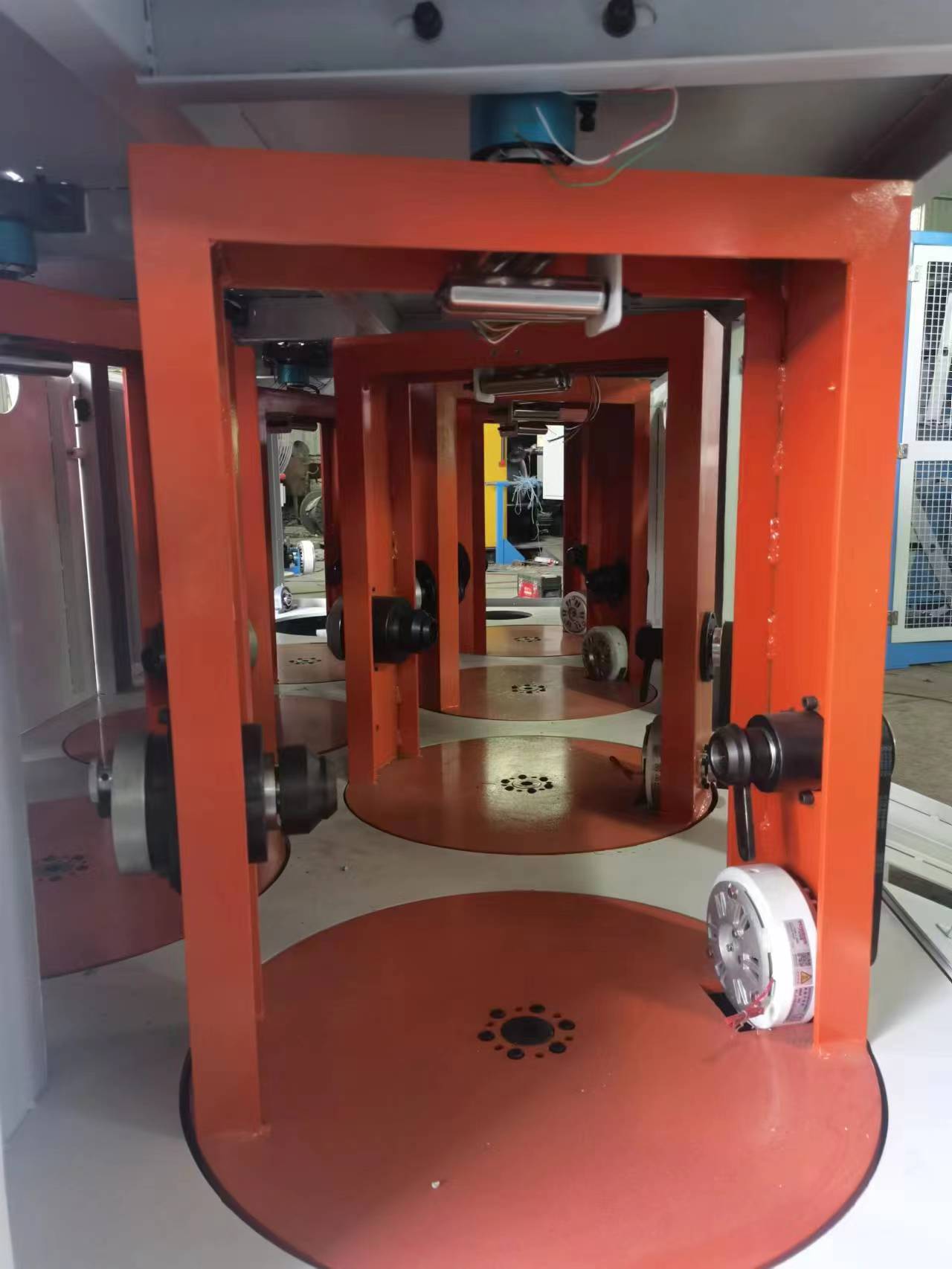

High-Strength Swing Frame
Welded steel frame minimizes rotational inertia for 500RPM smooth operation (<85dB).
Zero-Residual Twist Control
Encoder-synchronized with main machine ensures precise 0-100% de-twisting.
Industrial-Grade Safety
Wire-break auto-brake (3-10s adjustable) + door-limit sensors.
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
