How to Choose Between Single-Layer and Multi-Layer Cable Taping

In the wire and cable industry, few production steps seem as simple at first glance as cable taping. A roll of tape, a cable core, and a rotating head—what could be complicated about that? But as production speeds climb, as shielding requirements become tighter, and as new energy, data-communication, and high-frequency products dominate global orders, cable taping has quietly become one of the most technical—and risk-sensitive—operations on the factory floor. For many manufacturers, the choice between single-layer cable taping and multi-layer cable taping now affects everything from electrical performance to market access.

This article examines the hidden engineering behind taping systems, the production differences between single-layer and multi-layer configurations, and how factory managers can choose the right method based on product type, speed, shielding objectives, and long-term production cost.

What Cable Taping Really Does in Modern Cable Manufacturing

Cable taping is far more than a cosmetic wrapping process. It is a precision engineering step that directly influences a cable’s mechanical stability, flame resistance, electrical shielding, transmission efficiency, and lifespan.

Depending on the product category, taping can serve several key purposes:

• Insulation reinforcement for primary wire cores

• Shielding formation, especially using aluminum-polyester foil

• Fire resistance enhancement for FR, LSZH, and mica-taped cables

• Mechanical protection before sheathing

• Dimensional stability for small-diameter data cables

• Dielectric optimization in coaxial and RF products

Because these functions are highly application-driven, the choice of single-layer or multi-layer cable taping cannot be generalized. Each taping method produces different performance outcomes.

Understanding Single-Layer Cable Taping

Single-layer cable taping refers to applying one uniform wrapping layer around the conductor or core. It is commonly used in:

• PVC-insulated wires

• General building wires

• Entry-level shielded products

• Low-frequency communication cables

• Automotive primary wires

Advantages of Single-Layer Taping

Industry engineers typically choose single-layer taping for the following reasons:

1. High line speed
   Single-layer taping is fast. Modern systems equipped with PLC control and servo-driven tape heads can operate at speeds exceeding 3,000 rpm without compromising overlap stability.

2. Low cost
   Only one layer of material is consumed, lowering both tape usage and scrap.

3. Simplified production
   Fewer adjustments, quicker setup, and reduced training requirements for operators.

4. Suitable for non-critical shielding
   If the cable does not require tight mechanical or EMI performance, single-layer is sufficient.

Limitations of Single-Layer Taping

Single-layer cable taping is not suitable when a product requires:

• High shielding coverage

• Flame-resistant construction

• High-voltage stability

• Mechanical reinforcement

• Strict dimensional accuracy ( ±0.1 mm range )

• Multi-material layering (e.g., mica + polyester)

In such cases, multi-layer taping becomes necessary.

Understanding Multi-Layer Cable Taping

Multi-layer cable taping involves applying two or more tape layers in sequence, often with controlled overlap angles, varied tape materials, or alternating winding directions. It is used for:

• High-frequency LAN cables (Cat6A, Cat7, Cat8)

• EV high-voltage cables

• Fire-resistant cables using mica tape

• Medical device cables

• Industrial robotics cables

• Precision instrumentation wires

Advantages of Multi-Layer Taping

1. Improved shielding coverage
   Multi-layer foil wrapping can achieve nearly 100% shielding, eliminating the gaps that often occur in single-layer systems.

2. Better mechanical performance
   Two- or three-layer structures create greater compression resistance and enhance pull strength.

3. Thermal and flame protection
   Mica multi-layer wrapping is the only reliable method to achieve 90-minute flame survival.

4. Dimensional precision
   Advanced taping heads maintain uniform outer diameters even in multi-material structures.

5. Enhanced electrical performance
   Particularly important for high-frequency cables where layer uniformity affects impedance.

Limitations of Multi-Layer Taping

Multi-layer taping is not always ideal because it:

• Consumes more tape, increasing material cost

• Requires slower line speeds, especially for delicate mica

• Demands higher machine stability

• Involves more operator skill

Factory managers must therefore choose multi-layer taping strategically and only when required by product specifications or standards.

Key Comparison: Single-Layer vs Multi-Layer Cable Taping

The table below summarizes operational differences:

1. Material Cost

• Single-layer: Low

• Multi-layer: Medium to high

2. Mechanical Stability

• Single-layer: Basic

• Multi-layer: Strong

3. Shielding Effectiveness

• Single-layer: Acceptable for low-frequency

• Multi-layer: Essential for high-frequency and EMI-critical cables

4. Production Speed

• Single-layer: Fast

• Multi-layer: Slower, dependent on tape type

5. Product Type Compatibility

• Single-layer: General wire, building cable

• Multi-layer: High-end data, EV, instrumentation, fire-resistant

6. Equipment Requirements

• Single-layer: Standard PLC taping machine

• Multi-layer: Precision servo-controlled multi-head taping system

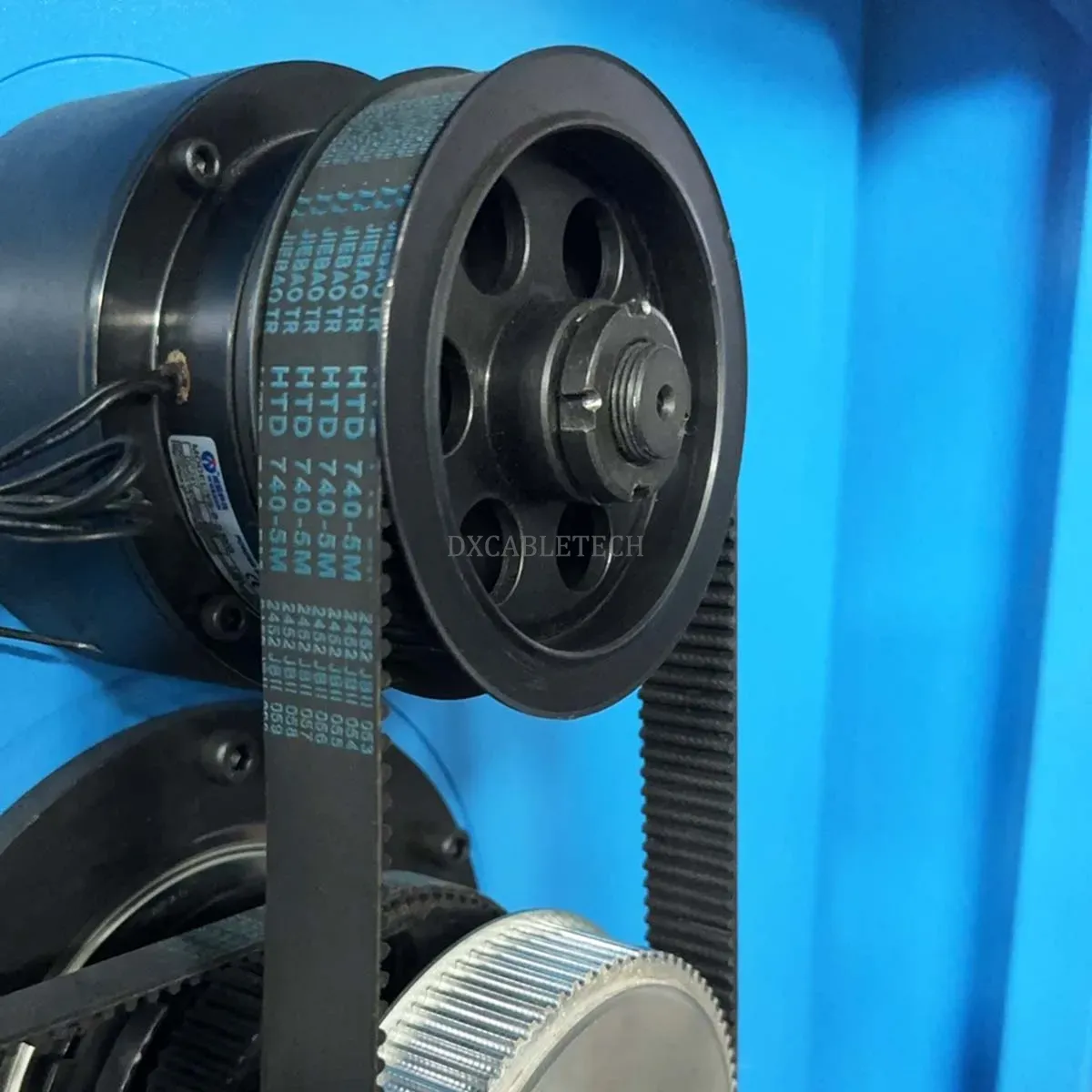

How Machine Technology Influences the Choice

In traditional cable factories, the choice between single-layer and multi-layer taping used to depend heavily on operator skill. But DOSING and other industry innovators have shifted this, integrating:

• PLC control systems

• Servo-driven tape heads

• Closed-loop tension control

• Automatic tape break detection

• Digital overlap angle adjustment

These innovations allow factories to switch between single-layer and multi-layer modes without major retraining, enabling more flexible production planning.

A modern taping system can change overlap from 10% to 50% with one command. For multi-layer wrapping, dual-head systems can apply foil and nonwoven simultaneously, maintaining tension within ±5 g.

This level of control reduces defects, improves consistency, and enables high-speed taping even in multi-layer applications.

Which Products Require Multi-Layer Cable Taping?

The following cable types almost always require multi-layer taping:

1. High-Frequency Data Cables (Cat7, Cat8, S/FTP)

EMI performance is directly tied to foil overlap accuracy and shielding density. Multi-layer taping ensures stable, gap-free wrapping even at tight bending radii.

2. EV High-Voltage Cables

Electric vehicle cables require:

• Strong dielectric construction

• Low partial discharge

• Stable mechanical protection

A single layer cannot provide all three.

3. Fire-Resistant Mica Cables

Industry standards demand multiple layers of mica tape to ensure flame endurance during emergency power-supply scenarios.

4. Medical and Instrumentation Cables

These cables require uniform outer diameter and high precision. Multi-layer taping provides repeatability and low signal loss.

5. Robotics and Automation Cables

Dynamic flex cables benefit from multi-layer reinforcement to withstand continuous movement.

When Single-Layer Cable Taping Is the Better Choice

Not all products need the complexity of multi-layer wrapping. Single-layer taping offers excellent performance for:

• Low-cost speaker wire

• PVC primary wire

• Building wire

• Basic communication cables

• Simple shielding needs

For factories producing commodity cables with high volume and low variation, single-layer systems provide a better ROI and lower downtime risk.

How to Choose: A Practical Decision Framework

Procurement managers and engineers can assess the correct method by evaluating five parameters:

1. Product Specification

If the cable must meet UL, IEC, or automotive shielding specifications, multi-layer is non-negotiable.

2. Operating Frequency

Above 100 MHz, single-layer foil is insufficient.

3. Mechanical Requirements

Impact resistance, bending fatigue, and tensile strength indicators may require reinforcement layers.

4. Thermal Requirements

If the cable is exposed to heat or fire, multiple layers improve insulation integrity.

5. Production Budget

Multi-layer taping improves performance but at higher material and operational cost.

Future Trends in Cable Taping Technology

The industry is rapidly moving toward:

• Digital taping control

• Smart diagnostic systems

• Automated multi-material heads

• Higher-speed dual-layer taping

• Laminated high-strength tapes for EV applications

These advancements reflect the growing complexity of modern cable products, especially in renewable energy, automotive electrification, and data-center infrastructure.

Conclusion: Choosing the Right Cable Taping Method for Your Factory

The decision between single-layer cable taping and multi-layer cable taping is ultimately about aligning product performance with production cost and manufacturing capability. Single-layer taping offers speed, simplicity, and lower material consumption, making it ideal for general-purpose wires. Multi-layer taping delivers higher shielding integrity, thermal stability, and mechanical performance—critical for high-end data, EV, instrumentation, and flame-resistant cables.

For factories expanding into advanced cable segments, investing in a modern taping system with multi-layer capability is no longer optional; it is a strategic upgrade that directly influences product competitiveness and long-term profitability.
