SPECIFICATION
Can Be Customized:
| Parameter | Specification |
|---|---|

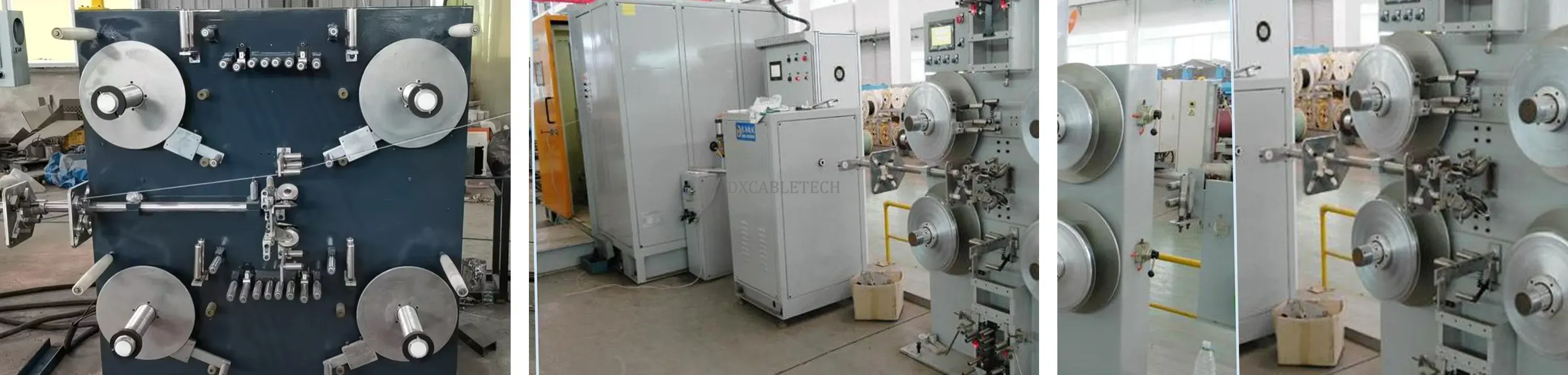

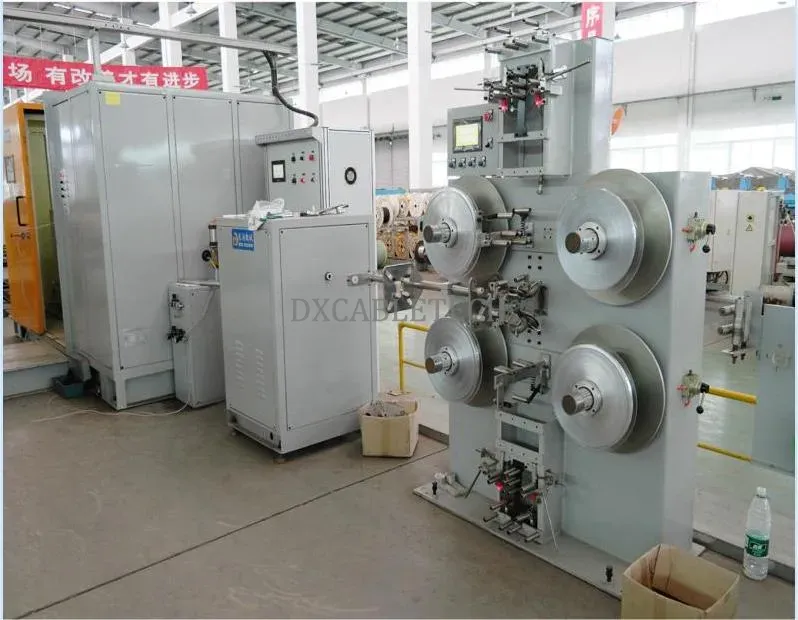

| Application | Cat6A & Cat7 Data Cable Core Binding |
| Binding System Design | Integrated Quad-Head Unit |
| Binding Heads | 4 Independent Heads |
| Tension Control | 4-Channel Independent System |
| Tape Reel Dimensions | |
| Inner Diameter | 76 mm |
| Outer Diameter | 300 mm |
| Width | 270 mm |
| Compatible Material | Mylar® Aluminum Foil (Shaft-Mounted) |
| Drive System | 1/4 HP Gear Motor with Inverter |
| Control System | PLC + 7" Color HMI Touchscreen |
| Tension Adjustment | Manual Swing Arm Slider Mechanism (Per Head) |
| Tension Technology | PID Closed-Loop Control with Load Cell Detection |
| Auto-Tension Feature | Full-to-Empty Spool Automatic Tension Tracking |
| Tension Monitoring | 4-Channel Independent Tension Display (HMI) |
APPLICATION & FEATURES
Applications:
Cellular Insulation for LAN/FTTH communication cables
Low-density Foam Jacketing in coaxial/automotive wires
HVAC-grade Foamed Cores for energy-efficient building cables
High-speed Production of Cat6/7 data cables
Engineered Advantages:
Precision Foam Control: ±0.02g/cm³ density tolerance via closed-loop nucleating agent injection.
Multi-layer Co-extrusion: Bonds foamed core with solid skin layers in single pass.
Zero-Gel Technology: Patented screw design eliminates unmelted particles.
Energy Saving: 30% lower power consumption vs. conventional lines (ISO 50001 certified).
Quick-Change Tooling: <30 min format conversion for different cable OD.
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
