HIGH-SPEED SPOOL-LOADED TAPING HEAD UNIT

Precision: Electromagnetic tension control (0.6KG)
Speed: 1500-2200 RPM
Automation: PLC-managed tape length/breakage protection
Flexibility: Processes Alu/Mylar/PTFE tapes
SEND REQUIRY
Product Details

SPECIFICATIONS




Can Be Customized:


Parameter

Specification
Motor1.5KW High-Torque Precision Drive
Tension Control0.6KG Electromagnetic Tensioner (±0.05% accuracy)
Inverter3-Phase 380V 1.5KW Industrial Grade
Braking Force2.5KG Single-Plate Instant-Response Brake
SynchronizationHost Machine Sync (Start/Stop/Speed)
Breakage ProtectionPhotoelectric Sensor + PLC Auto-Stop (0.2s response)
Tape Length ControlPre-set Length + Auto Slowdown (±1mm tolerance)
Operating Speed1500-1800 RPM (Max 2200 RPM Burst Mode)
Compatible MaterialsAlu Foil • Mylar® • Mica • PTFE • Flame-Retardant • Tissue Tape




APPLICATION & FEATURES



Applications:

Precision lapping for enameled wires, motor windings, and fine coaxial cables.

Ideal for insulated conductors in robotics, instrumentation, and control cables.

Features:

Auto-Tension Tracking: Dynamically adjusts tension based on tape diameter.

PLC Intelligence: Pre-set tape length control + breakage auto-stop.

High-Speed Sync: Seamless 2200RPM operation with host machinery.

Multi-Material Adaptability: Handles 8+ specialized tapes (e.g., Mylar/Aluminum foil).

Zero-Downtime Design: Quick-change free-standing structure.

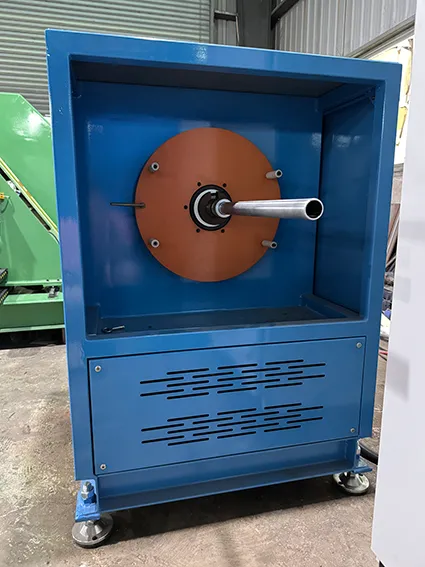

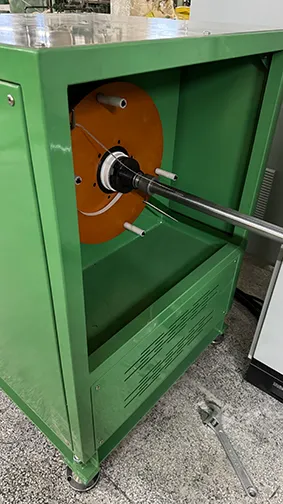

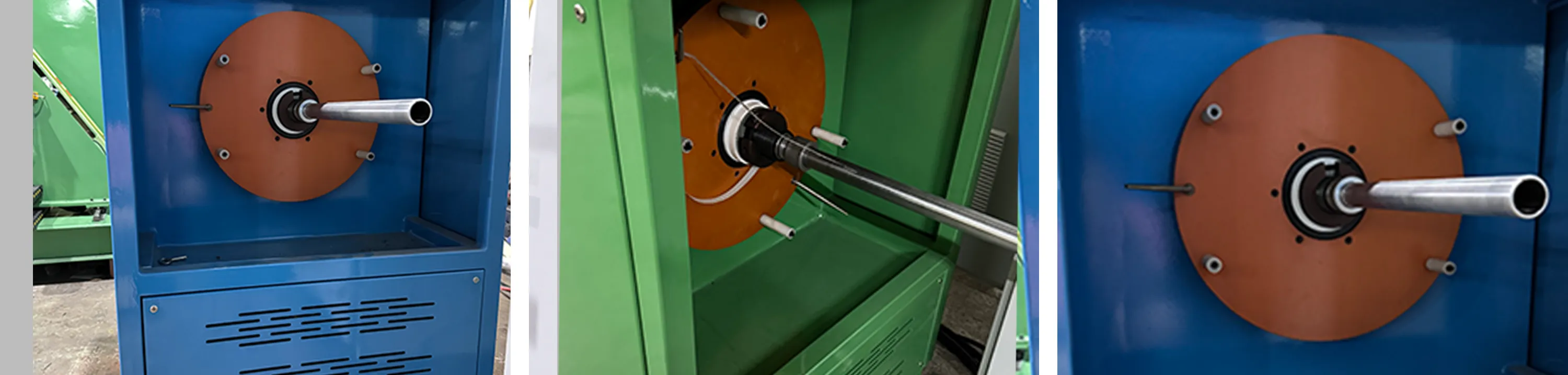

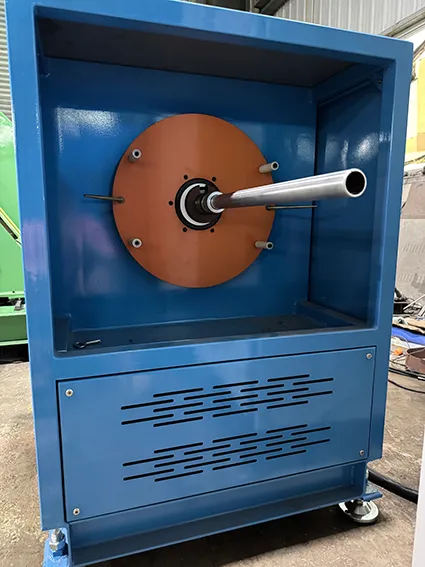

Three detailed views of a HIGH-SPEED SPOOL-LOADED TAPING HEAD UNIT: Left: A front - facing view revealing the blue - cased internal structure, featuring an orange rotating disk and a central shaft, emphasizing the core assembly designed for high - speed taping operations. Middle: An angled view of the spool - loaded mechanism within a green - cased unit, showing wire routing through the central shaft and positioning elements, illustrating the precision wire - guiding design. Right: A close - up front view of the blue - cased orange disk and central shaft, highlighting the robust mechanical coupling and symmetrical layout that ensure stable high - speed rotation.



OUR SERVICE


Provide Free Pre-sales Training:

We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.


Customer On-site Installation Guide:

The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.


After-sales Service Content Details:

We support the After-sales in response quickly, to complete the delivery.

Free service guarantee period: 12 months from the date of shipment (except for wearing parts).

We will charge you for travel fees and other costs.

If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
