"Unveiling Cable Manufacturing" — Basic Processes Part (1)

The Birth of a Cable (1): The Soul Within—How Conductor Insulation Achieves "Flawlessness"

When we enjoy the convenience brought by high-speed internet and stable electrical currents, have we ever stopped to think that all of this relies on a seemingly ordinary yet intricately crafted cable? The true core of a cable is far more complex than just "copper wires wrapped in plastic." Today, we invite you to step into the production facility of Dongguan Dongxin Automation Technology Co., Ltd. to explore the first critical step in cable manufacturing—conductor insulation—and see how we use advanced "core wire insulation extrusion production lines" to breathe "soul" into cables.

Why Must Conductors Have an "Insulating Jacket"?

If electricity is likened to "water flow," then conductors (typically copper or aluminum) are the "pipes." However, just having pipes is not enough—different pipes must be effectively isolated to prevent interference or leakage.

• Safety Barrier: Insulation prevents short circuits and electric shocks, safeguarding lives and property.

• Signal Integrity: Especially in communication cables, the insulation layer acts as an "information highway," significantly reducing signal crosstalk and ensuring high-speed, stable data transmission.

• Physical Protection: It resists external damage such as friction, chemical corrosion, and moisture, greatly extending the cable’s service life.

It can be said that the quality of the insulation layer directly determines the performance grade and lifespan of the cable.

The "Extrusion" Process: Like Uniformly Coating Noodles

How is a perfect plastic coating applied to metal conductors as fine as a hair or as thick as a finger? The secret lies in the "extrusion" process.

This process is reminiscent of making a bowl of hearty "filled noodles":

• "Kneading" – Plasticization: Solid plastic pellets (e.g., PVC, PE) are fed into the extruder barrel, where heating and screw shearing melt them into a uniform, viscous "dough" (melt).

• "Extruding" – Conveying: The screw acts like a steady hand, continuously and evenly pushing the plastic melt forward.

• "Coating" – Molding: Under high pressure, the melt passes through a precision mold (die). The conductor (core wire) runs through the center, while the melt evenly envelops it from all sides, forming a continuous, smooth, and uniformly thick insulating layer.

• "Setting" – Cooling: The coated wire core immediately enters a cooling water tank to rapidly solidify and set. Once done, this "jacket" becomes inseparable.

What Does "Flawlessness" Mean? Three Key Indicators Define Quality

• An excellent "jacket" must fit well, be uniform, and free of defects. For the insulation layer, we focus on three core indicators:

• Thickness Uniformity and Concentricity: The insulation must fully encase the conductor at its exact center with consistent thickness throughout. Any eccentricity can cause uneven electric field distribution, creating potential breakdown points.

• Freedom from Impurities and Bubbles: The interior of the insulation layer must be pure and dense. Even tiny impurities or bubbles form weak points prone to failure under high voltage or high frequency.

• Surface Smoothness: A smooth surface facilitates subsequent processes (e.g., stranding, shielding) and better protects the conductor’s integrity.

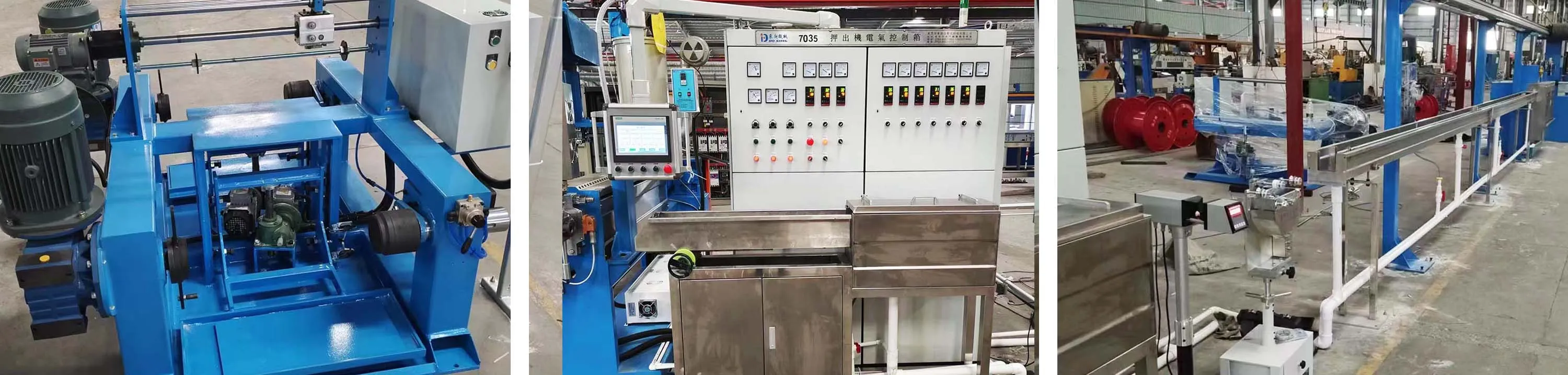

How Is "Flawlessness" Achieved? DOSING Automation’s Precision Promise

At Dongguan Dongxin Automation (DOSING), we adhere to a manufacturing philosophy of "precision in every detail." Our core wire insulation extrusion production lines ensure flawless insulation through the following precision designs:

• Intelligent Temperature Control System: Multi-zone PID high-precision temperature control modules regulate the temperature of the barrel and die areas within ±1°C, ensuring uniform plasticization and eliminating material unevenness or defects.

• Efficient Screw Design: Optimized compression ratios and flight structures for different materials (e.g., PVC, PE, PP) enable smooth, pulse-free melt conveyance, laying the foundation for uniform thickness.

• On-Line Diameter Gauge: Acting as a "real-time quality inspector" on the production line, it monitors the insulation layer’s diameter and concentricity 360° without blind spots. Any micron-level deviation triggers an immediate alarm and automatic adjustment, nipping defects in the bud.

• High-Precision Die and Guidance System: The molds are precision-machined with optimized fluid dynamics to ensure balanced melt flow pressure. Paired with top-tier conductor guidance systems, the conductor remains perfectly centered in the mold, guaranteeing ultra-high concentricity.

Conclusion

Conductor insulation is the first and most critical step in the long journey of cable manufacturing. Only when this "inner layer" is truly flawless do subsequent processes—such as cabling, shielding, and sheathing—add value, ultimately resulting in high-performance, safe, and reliable cable products.

Dongguan Dongxin Automation Technology Co., Ltd. (DOSING) has always been deeply committed to the cable equipment manufacturing industry. Every core wire insulation extrusion production line embodies our profound understanding of technology and relentless pursuit of quality. We provide not just equipment but also the core technical assurance for stably producing high-quality cables.
