APPLICATION & FEATURES
APPLICATION
Suitable for detecting insulation defects in a wide range of wires and cables during the extrusion process, including but not limited to:
Automotive wires (meeting VDA standards)
Building wires (CCC compliant)
Electronic appliance wires
Communication cables
Various other coated conductors
FEATURES
High-Frequency AC Technology: 2.0-3.5KHz for high-speed detection up to 1000 m/min.
Pinpoint Accuracy: Reliably finds pinholes & defects without harming intact insulation.
Robust for Industry: Durable build with 0.1s self-recovery for minimal downtime.
Plug-and-Play Integration: Easy extruder accessory with automatic line control.

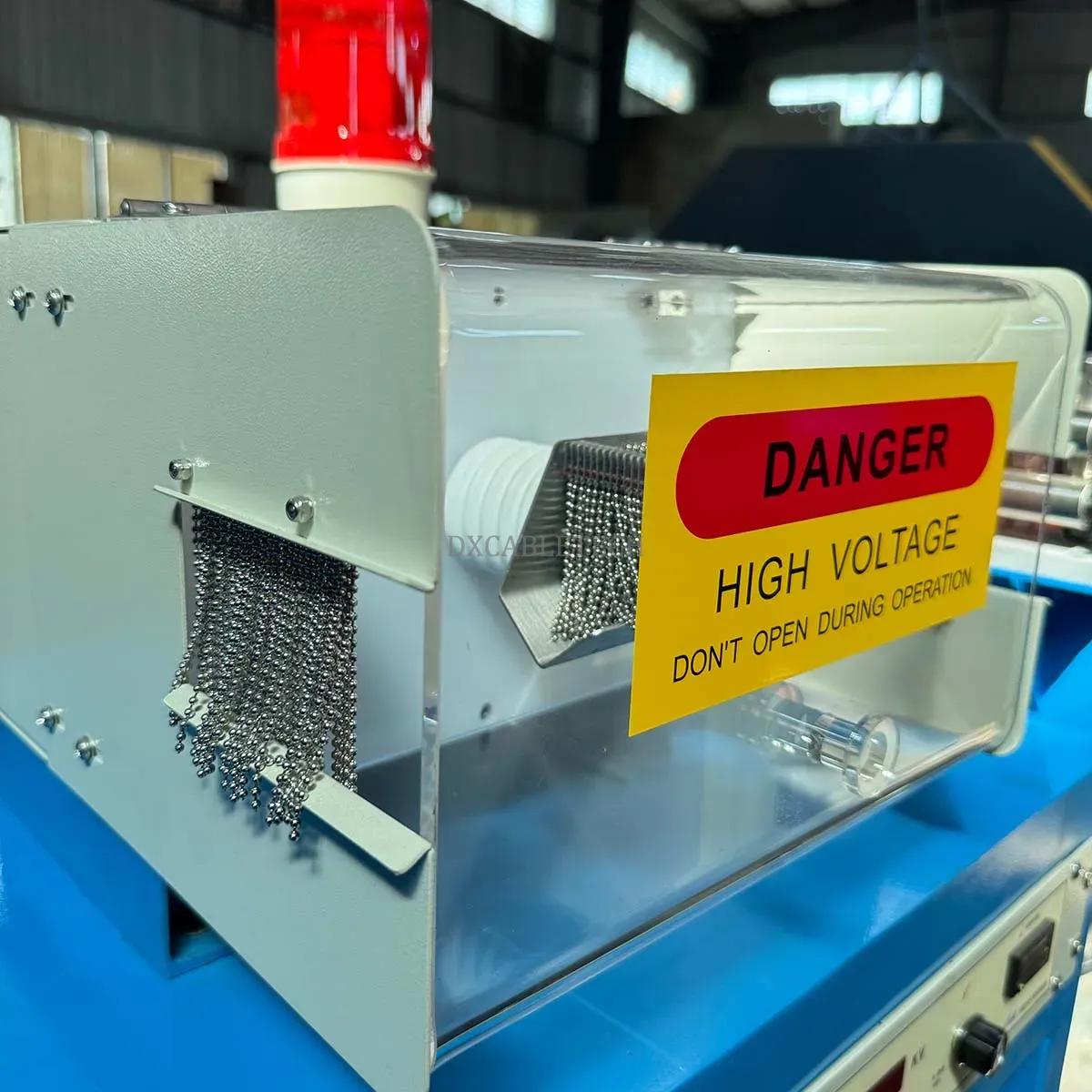

Safety Compliant: Meets UL, VDA, CCC standards with clear audio/visual alarms.
Customizable: OEM/ODM services available for color and electrode length.
Technical Specifications
Can Be Customized:
| Parameter | Specification | |
|---|---|---|
| Max. Detection Voltage | 0 - 15 KV (Adjustable) | |
| Output Frequency | 2.0 - 3.5 KHz | |
| Power Supply | AC 220V | |
| Power Consumption | < 300 W | |

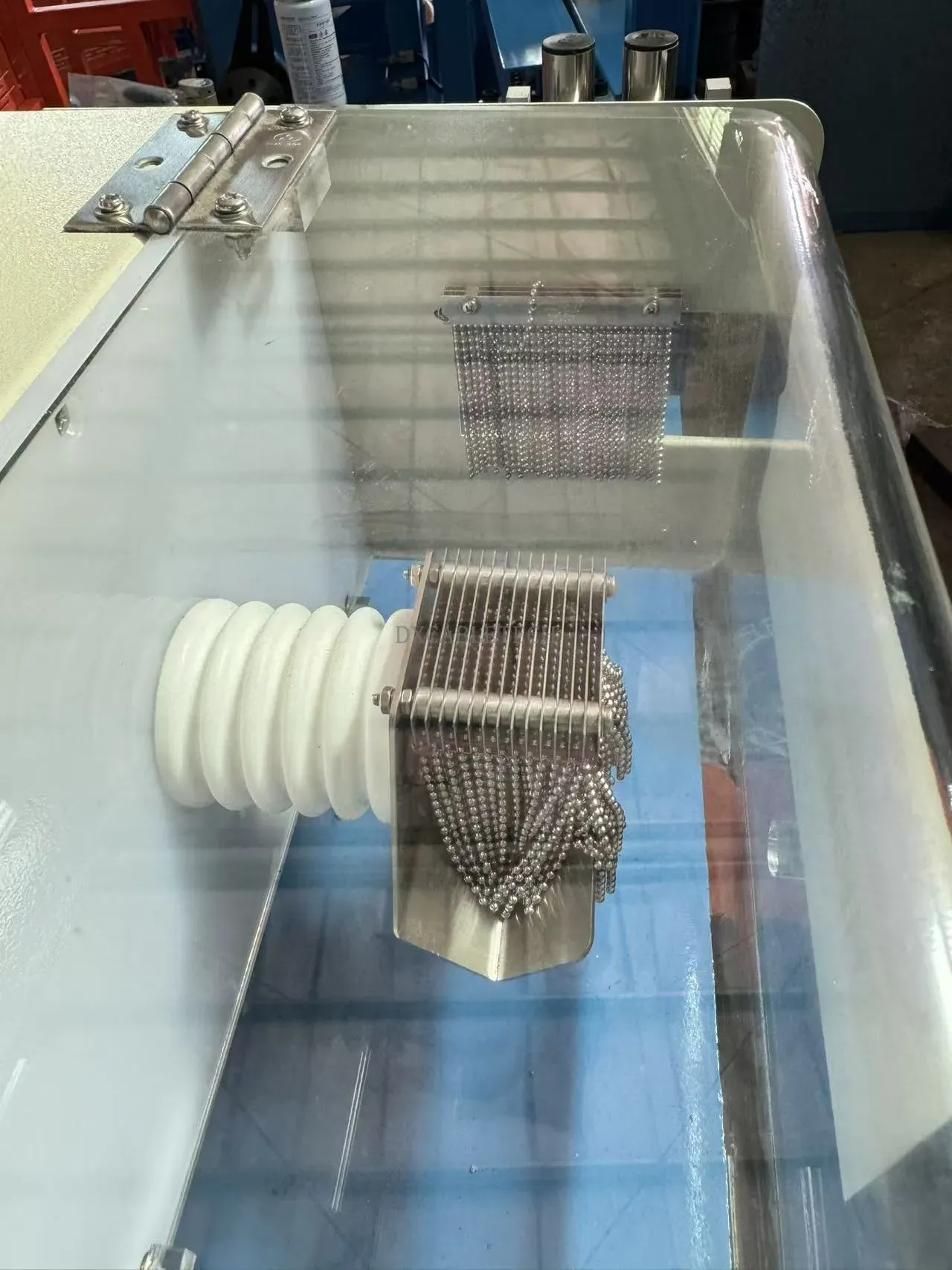

| Electrode Length | 20 mm (Standard, other lengths customizable) | |
| Max. Detected Wire OD | **Round Wire: 8 mm | Flat Wire: 12 mm** |
| Max. Wire Traveling Speed | Up to 1000 m/min | |
| Detection Reset Time | Approx. 0.1 second | |
| Input Indication | 4-Digit Reset Counter | |
| Max. Load Current Resistance | 4 mA | |

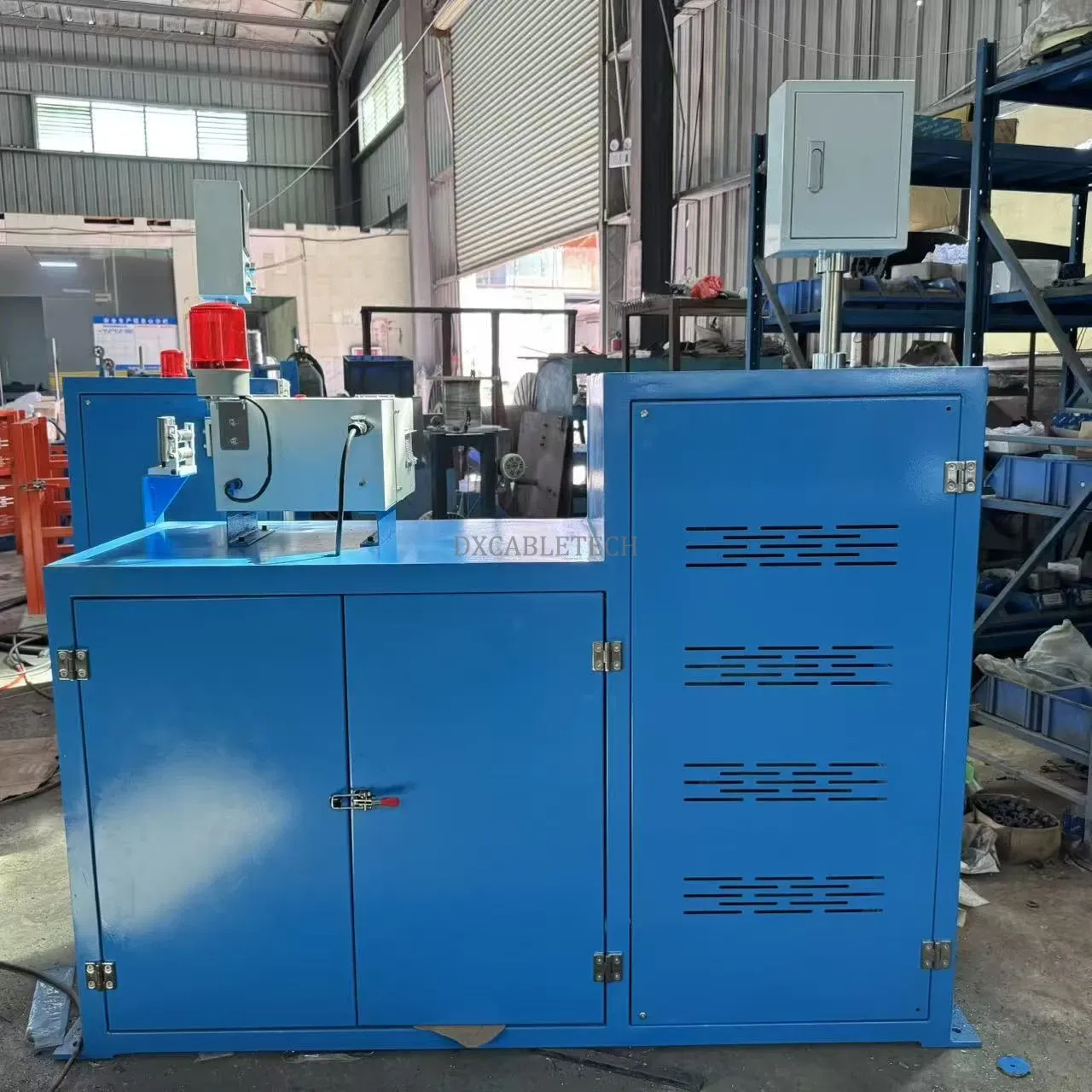

| Structure | Vertical Type |
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
