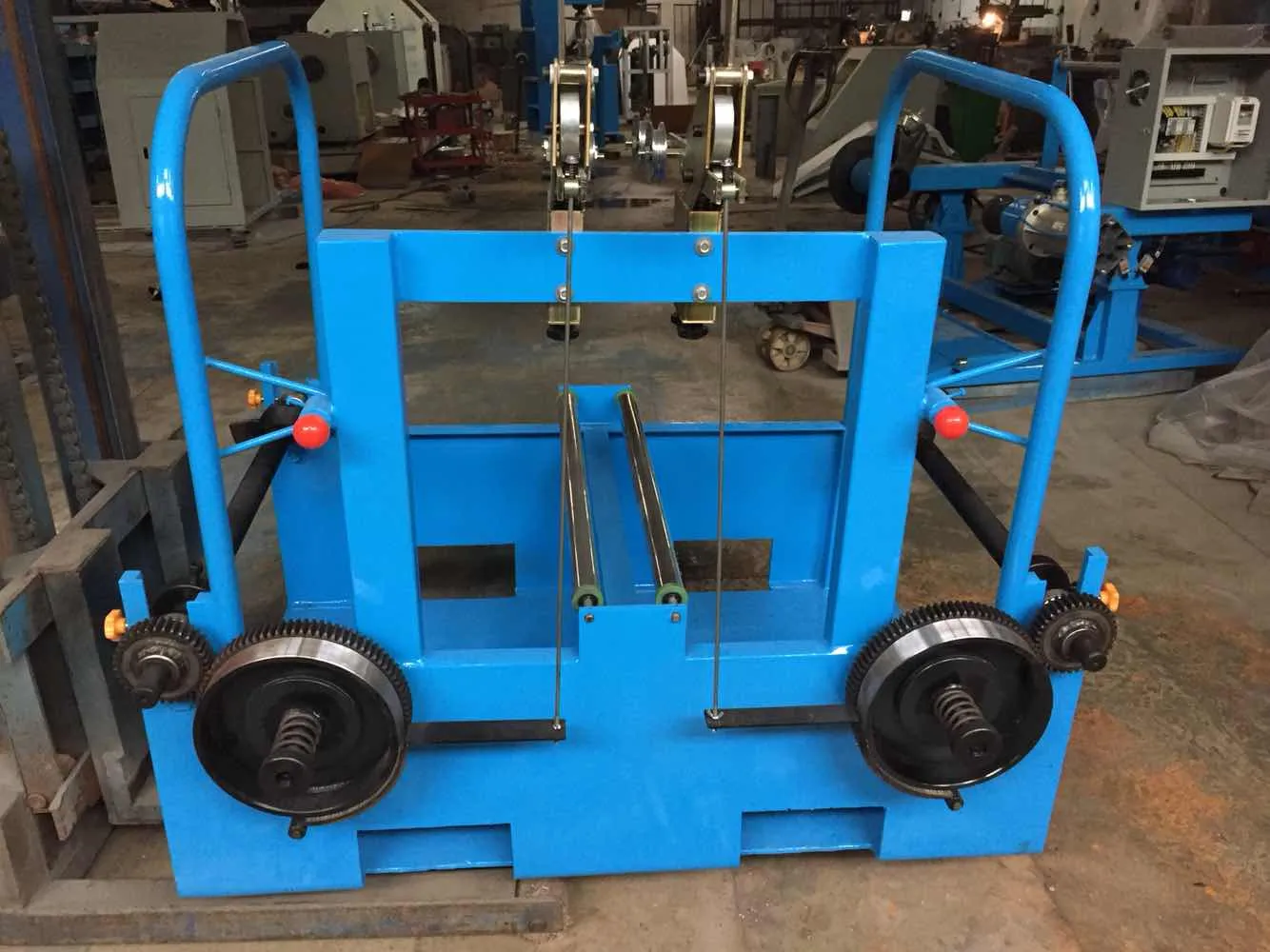

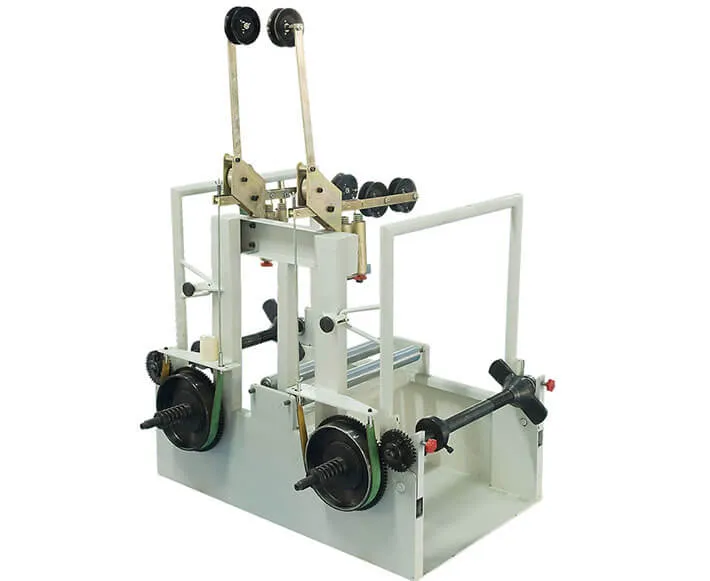

SPECIFICATIONS
Can Be Customized:
| Parameter | Specification |
|---|---|
| Reel Diameter | Max Ø500mm (Shaft Type Payoff Machine) |
| Line Speed | 500 m/min |
| Lifting Mechanism | Manual Hand Crank |

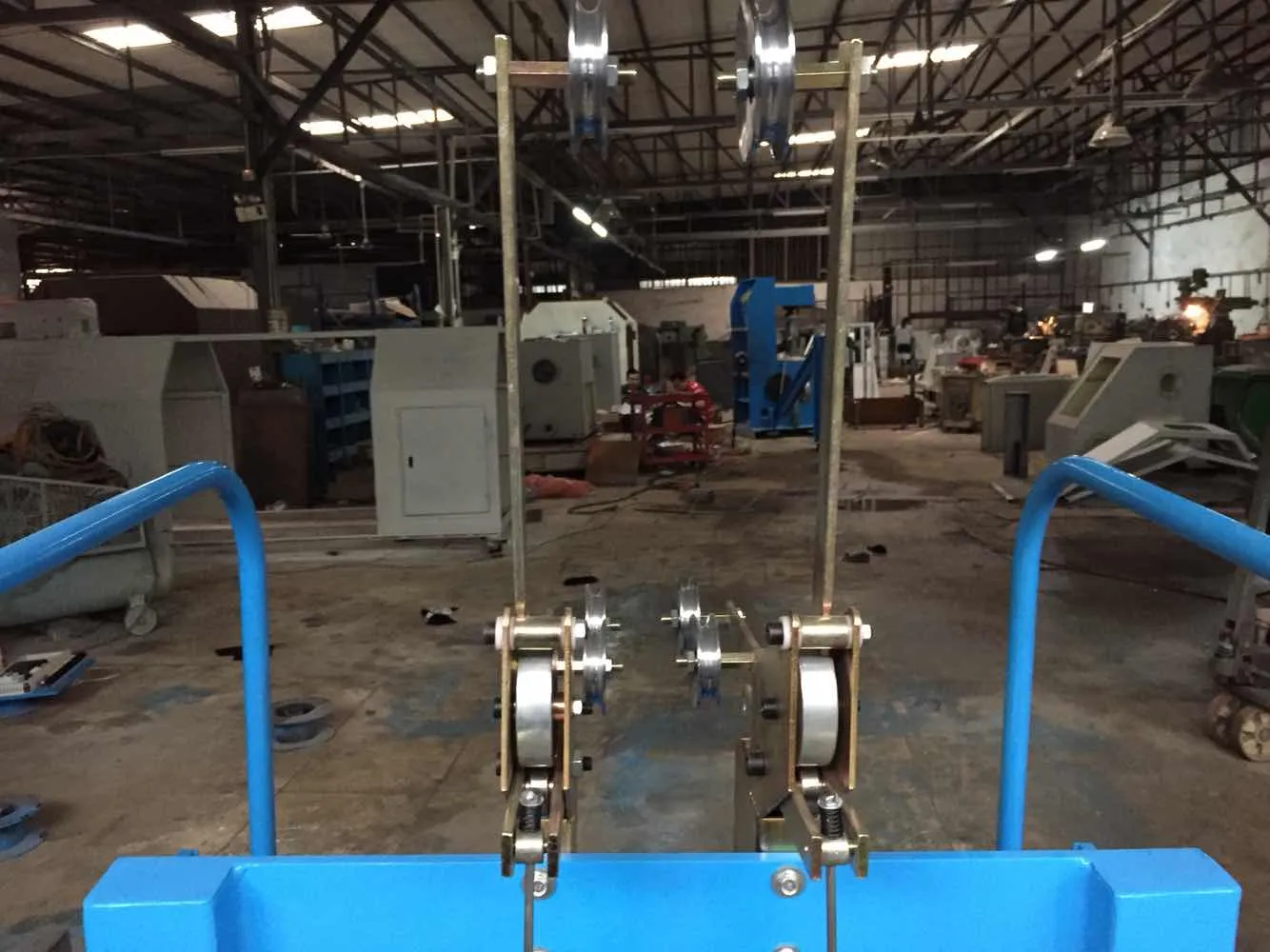

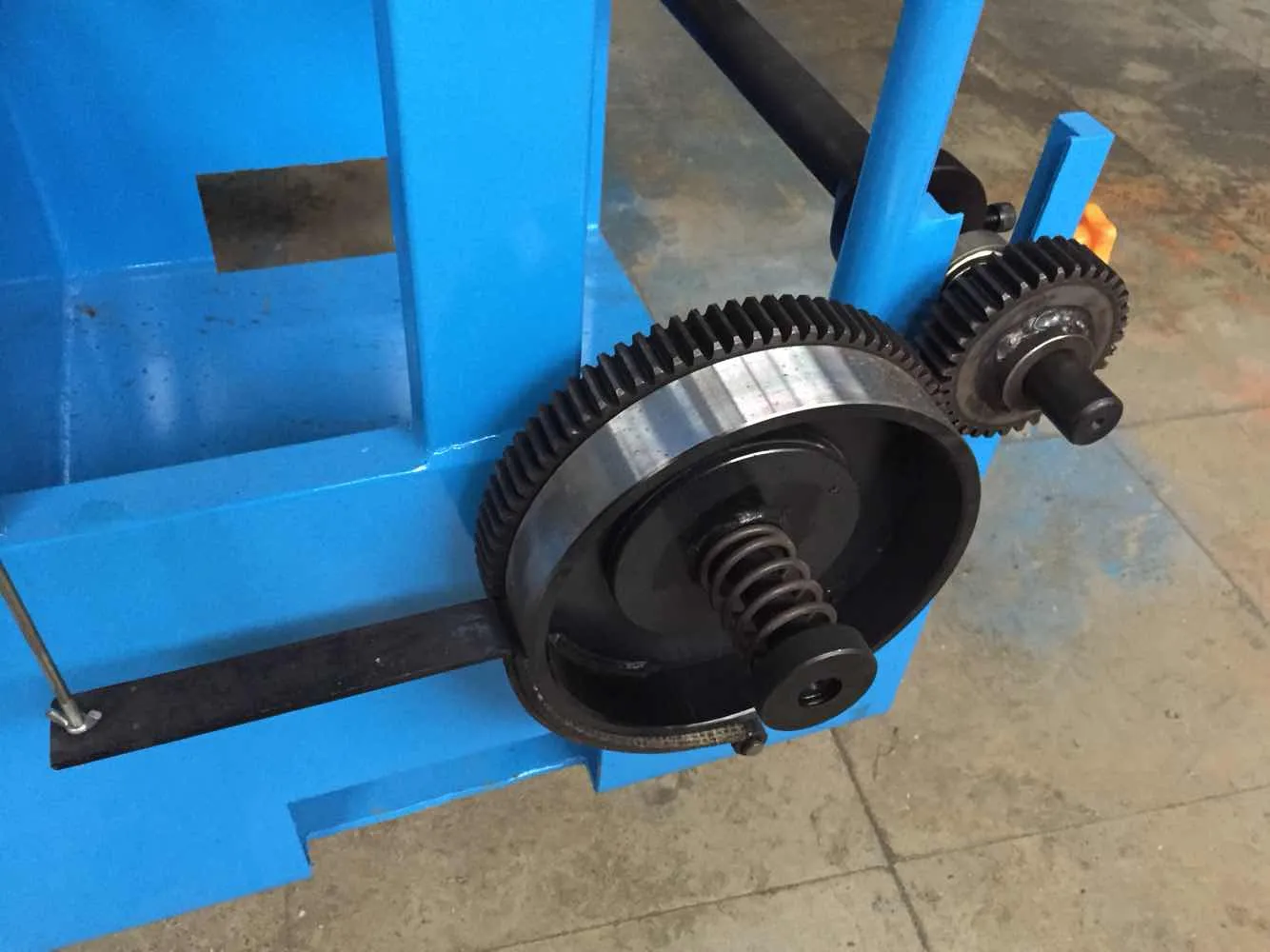

| Tension System | Spring Adjustment + Auto - Stop |
| Applicable Wires | Enameled / BVR / Bare Copper / All Cables |
APPLICATION&FEATURES
APPLICATION：
▸ High-Voltage Cable Production
Precision unwinding for 0.5-35mm² power cables at 800m/min using the wire payoff machine.
▸ Specialty Wire Manufacturing
Maintains ±1% tension for coaxial/shielded cables
▸ Automated Line Integration
Servo signals sync with PLC for unmanned feeding
FEATURES：
▸ Direct-Drive Servo System
0.01s response time | Zero-slip start/stop
▸ Smart Shaft Adaptation
Fits DIN478/ISO379 cores (±0.1mm tolerance)
▸ Dual-Mode Tension Control
Speed/torque closed-loop for stranding/bundling
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
