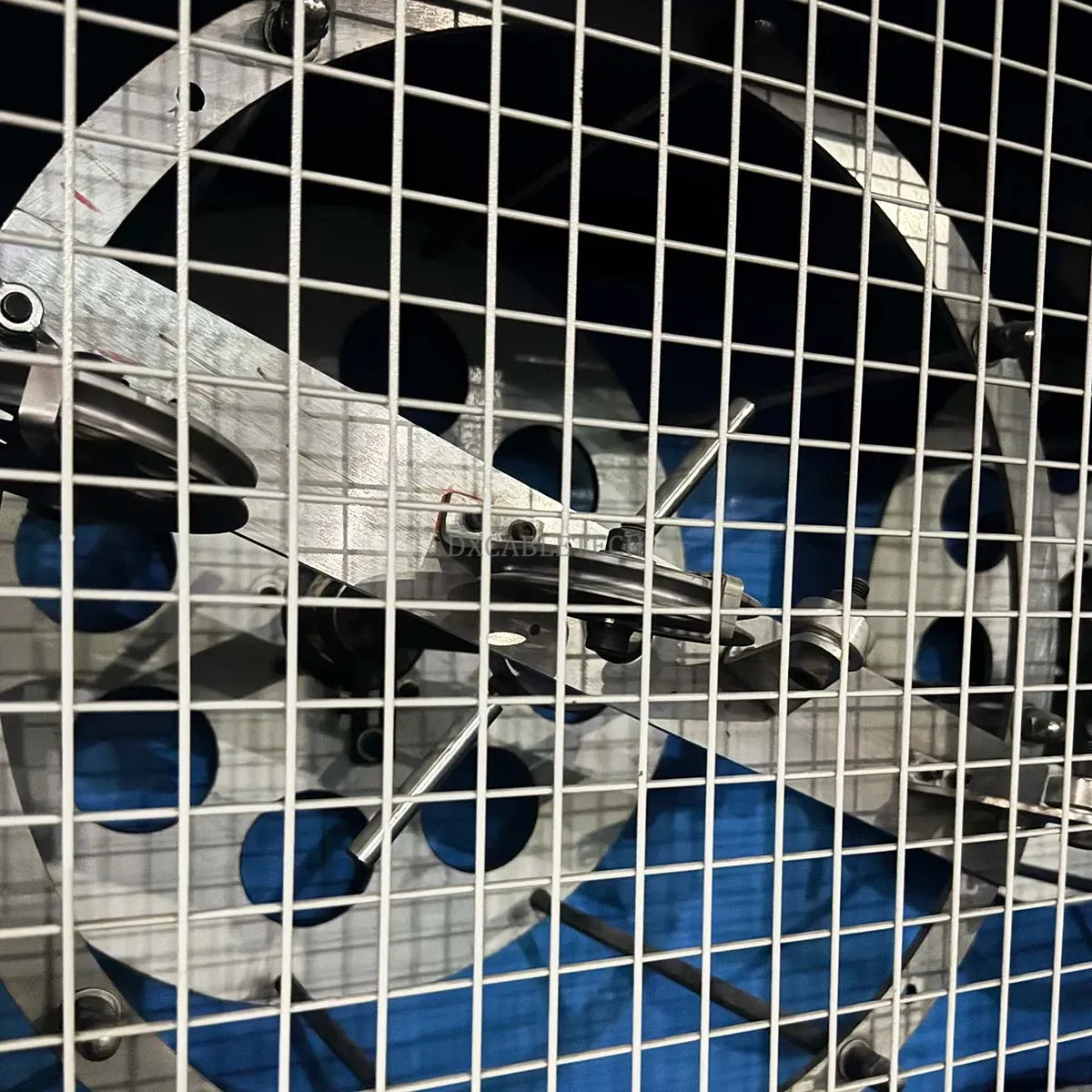

Back-twist mismatch is one of those problems every stranding workshop claims to “understand,” yet very few fully diagnose. It shows up quietly—ovalized wires, unstable lay length, random birdcaging, unexpected hardness on the outer layer—until suddenly the entire reel becomes unusable.
And because the symptoms resemble tension instability, lubrication issues, or rotor vibration, many teams chase the wrong cause and lose days of production.

This guide breaks the issue down to its fundamentals:
what creates back-twist mismatch, how to measure it correctly, and how to fix it without trial-and-error.
No vague theories. Only actionable engineering practice.

1. What Back-Twist Actually Is — and Why It Goes Wrong

Back-twist is the reverse rotation applied to individual wires before they enter the stranding point.
Its purpose is simple:

• The conductor should not carry residual torsion after forming the strand.

• Without proper back-twist, wires try to “spring back,” creating deformation or loose lay.

A mismatch happens when back-twist amount ≠ strand twist requirement — even by small margins.

There are only four engineering reasons this happens:

1. Mechanical transmission ratios drift (gear wear, pulley slip, belt relaxation).

2. Control system synchronization is off (servo delay, encoder misalignment, PLC logic error).

3. Incoming wire has inconsistent torsional memory (caused by previous processing).

4. The machine’s back-twist mechanism cannot maintain stability under speed changes.

If you don’t solve the problem at the right level, the mismatch keeps reappearing regardless of rotor, tension, or tooling adjustments.

2. Symptom-Based Diagnostics: How to Identify True Back-Twist Mismatch

Before fixing anything, confirm the problem is actually back-twist mismatch.
Here’s how experienced technicians diagnose it in minutes.

Symptom A: Wire tries to unwind when tension is removed

Test: cut a 1 m sample near the stranding point. Release tension.
Result:

• Wire rotates forward → insufficient back-twist

• Wire rotates backward → excessive back-twist

Symptom B: Lay length varies within the same pitch

Usually appears when servo and rotor speed are not perfectly synchronized.

Symptom C: One side of the strand feels “harder” or “stiffer” than the other

Outer wires carry torsion, inner wires relax → textbook mismatch.

Symptom D: Birdcaging only at speed ups/downs

This indicates dynamic mismatch, not static mismatch — meaning the following:
The back-twist compensation system reacts too slowly to speed transitions.

Once confirmed, you can move to targeted corrective actions.

3. Mechanical Causes and Solutions

Mechanical mismatch typically comes from wear, drift, or unbalanced transmission loads.

3.1 Gear Ratio Drift (Older Machines)

Problem: Back-twist is mechanically coupled to main rotor speed via gears.
As gear wear accumulates, the ratio becomes inaccurate by 1–3%, enough to distort lay consistency.

Solution:

• Measure backlash on the back-twist gear train.

• If backlash > manufacturer tolerance, replace gears or shafts.

• Lubrication schedule must be adjusted to prevent accelerated wear.

For machines over 8–10 years old, mechanical linkage drift is the most common root cause.

3.2 Belt-Driven Back-Twist Mechanisms

Belts stretch under load and speed changes, creating intermittent mismatch.

Testing method:
Mark belt and pulley, run machine 20 minutes, check alignment shift.

Fix:

• Re-tension belts strictly according to NM specification.

• Replace belts showing glazing or cracking.

• Upgrade to toothed belt or direct-drive servo if the design allows.

3.3 Bearings Causing Micro-Slip

A bearing with increased friction generates irregular back-twist because it resists the counter-rotation.

Fix:

• Check bearing torque at 10 RPM and 100 RPM.

• Replace any bearing exceeding torque tolerance.

• Re-grease with high-temperature synthetic grease.

4. Control System Causes and Solutions

This is where modern machines differ greatly from older ones.
If your unit uses PLC-servo coordination, back-twist mismatch often comes from signal timing, not hardware.

4.1 Encoder Misalignment

If the encoder on the rotor or back-twist arm loses zero or is mounted slightly off-center:

• Back-twist precision degrades.

• Error becomes more obvious at higher speeds.

Solution:

• Re-zero all motion axes.

• Confirm encoder resolution equals control system setting.

• Replace low-quality encoders with high-IP precision models (≥17-bit recommended).

4.2 Servo Response Delay

If the servo does not update torque fast enough, dynamic back-twist mismatch occurs during acceleration/deceleration.

Fix:

• Increase servo gain (within safety limits).

• Upgrade servo driver firmware.

• Shorten cable length between servo and PLC.

• Switch from analog to digital communication if still using analog input.

4.3 PLC Cycle Time Too Slow

If PLC scan time is too long or too many calculations share the same cycle, the back-twist command updates late.

Solution:

• Offload heavy logic blocks to motion modules.

• Increase PLC CPU speed.

• Separate tension control loop from back-twist loop to avoid interference.

5. Material-Related Causes and Solutions

Even if your machine is perfect, poor incoming wire can create torsion inconsistency.

5.1 Wire with Residual Twist from Pay-Off

Typical when:

• Drums were wound improperly

• Spools rotate unevenly

• Pay-off frame has mechanical vibration

Fix:

• Add anti-torsion rollers before the strander.

• Install active back-twist neutralizers (common in high-end machines).

• Inspect pay-off alignment (80% of deformation issues start here).

5.2 Lubrication Film Too Thick/Too Thin

Lubrication changes friction and twist absorption.

Fix:

• Switch to controlled-viscosity lubrication.

• Maintain 1–2 µm uniform coating depending on wire gauge.

6. Process-Level Solutions: Setting the Right Back-Twist Value

Knowing how much back-twist to apply is not guesswork.

Here is a more engineering-accurate formula used by high-precision strander makers:

Back-twist angle = (360° × pitch length ÷ lay length) × compensation factor

Where:

• pitch length = circumference of wire path in rotor

• compensation factor = 0.95–1.10 depending on material memory

For copper: 0.98–1.03
For steel wire: 1.05–1.10
For aluminum: 0.97–1.00

If your operator sets this visually, you will have recurring mismatch forever.

7. Speed-Change Compensation — The Most Overlooked Fix

Even if your static back-twist is correct, mismatch will appear during:

• Startup

• Acceleration

• Deceleration

• Emergency stops

• Re-synchronization after spool change

The only reliable solution is dynamic compensation:

7.1 Install a Back-Twist Predictive Algorithm (PLC/Servo)

Uses anticipatory torque control to match rotor acceleration.
Recommended for machines ≥2000 RPM.

7.2 Increase Sampling Rate of Tension Sensors

Low sampling rate causes delayed control updates.
Always use ≥1 kHz sampling for precision stranding.

7.3 Use Electronic Back-Twist Instead of Mechanical

Electronic systems maintain ratio regardless of wear, friction, or load.

Most premium stranding machines have already moved in this direction because:

• No belts

• No gear wear

• No delayed response

• Full PLC control over twist profile

If your machine is mechanical, this is the ultimate long-term fix.

8. When to Upgrade Instead of Repair

Back-twist mismatch becomes financially destructive when:

• Speed must remain low to keep product stable

• Scrap rate exceeds 1–2%

• Lay length tolerance cannot meet EV cable or data cable standards

• Mechanical transmission costs exceed the cost of replacing the back-twist unit

For many plants, modernizing the back-twist control system increases throughput by 20–40% while reducing deformation by 80–95%.

Conclusion: Back-Twist Mismatch Is a Solvable Engineering Problem

Most plants treat back-twist mismatch as an “operator problem” or “machine age problem.”
But the root cause is always mechanical, control-system, or material-related — nothing unpredictable.

If you follow the structure:

1. Diagnose accurately

2. Fix mechanical inaccuracies

3. Re-align control system synchronization

4. Stabilize incoming material behavior

5. Apply correct static and dynamic back-twist values

You eliminate the problem completely rather than hiding it through lower speeds or higher tension.
