SPECIFICATIONS
Can Be Customized:
| Parameter Name | Value |
|---|---|
| Function | Bi-directional Rewinding (Large ↔ Small Spools) |
| Spark Test Voltage | 0-15 kV Adjustable |
| Max Line Speed | 600 m/min |
| Spool Capacity | ∅ 800-1500 mm (Large) / ∅ 400-630 mm (Small) |
| Power Supply | 380V/50Hz (3-Phase) |

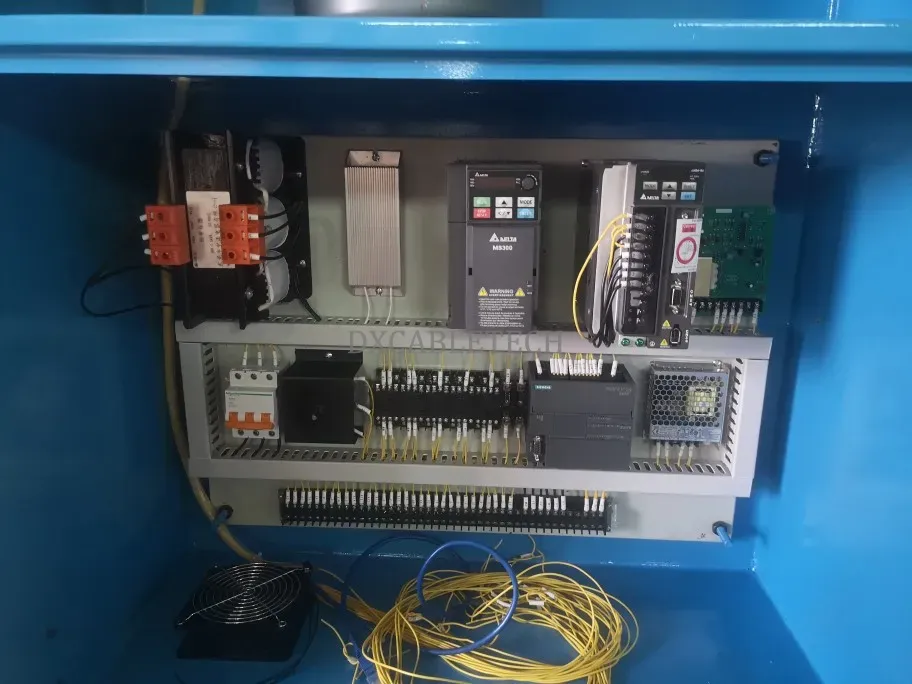

| Control System | PLC + Touchscreen HMI |
| Auto Stop Response | ≤0.1 sec |
| Rewinding Precision | ±0.2% Tension Control |
| Frame Material | Powder-coated Steel |
APPLICATION & FEATURES

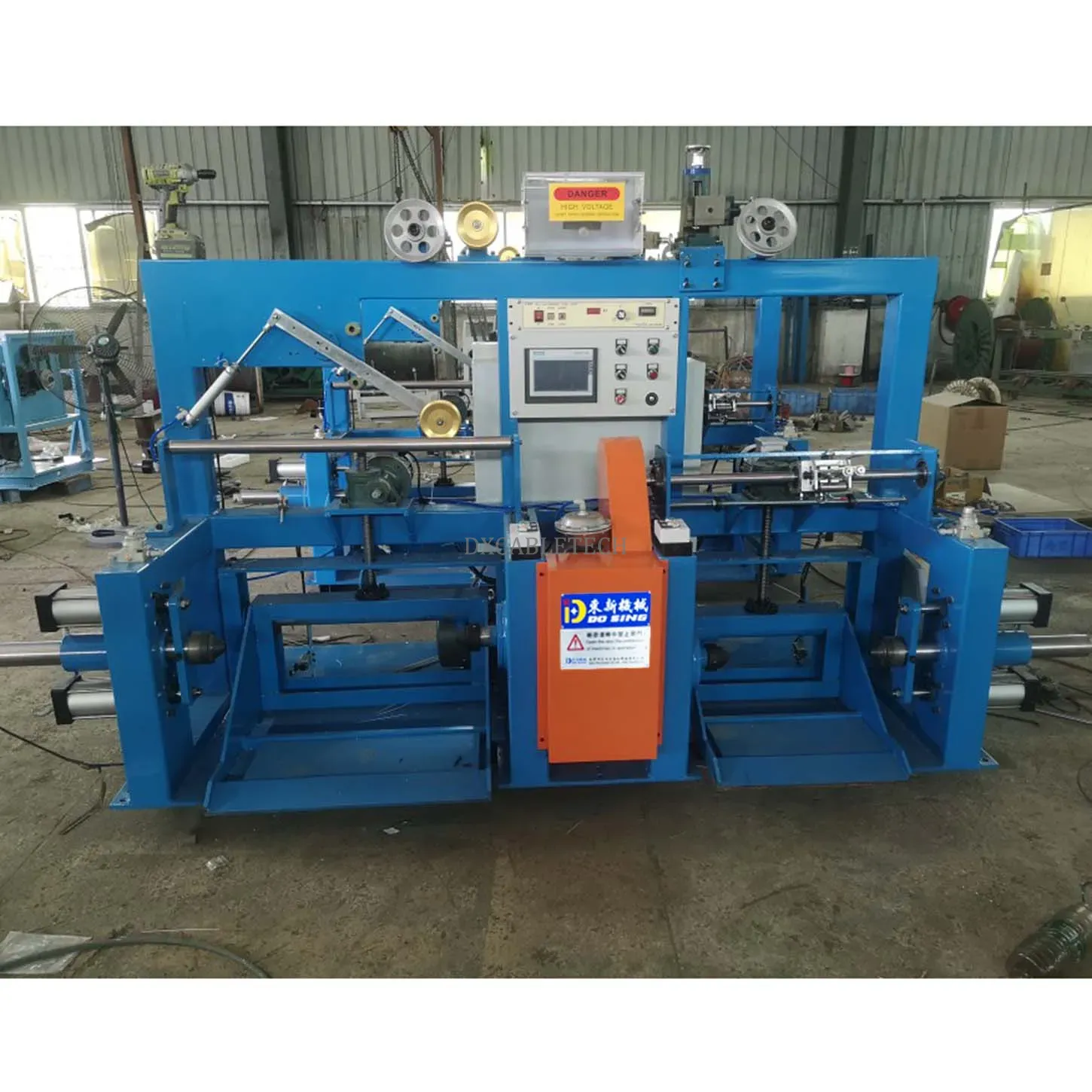

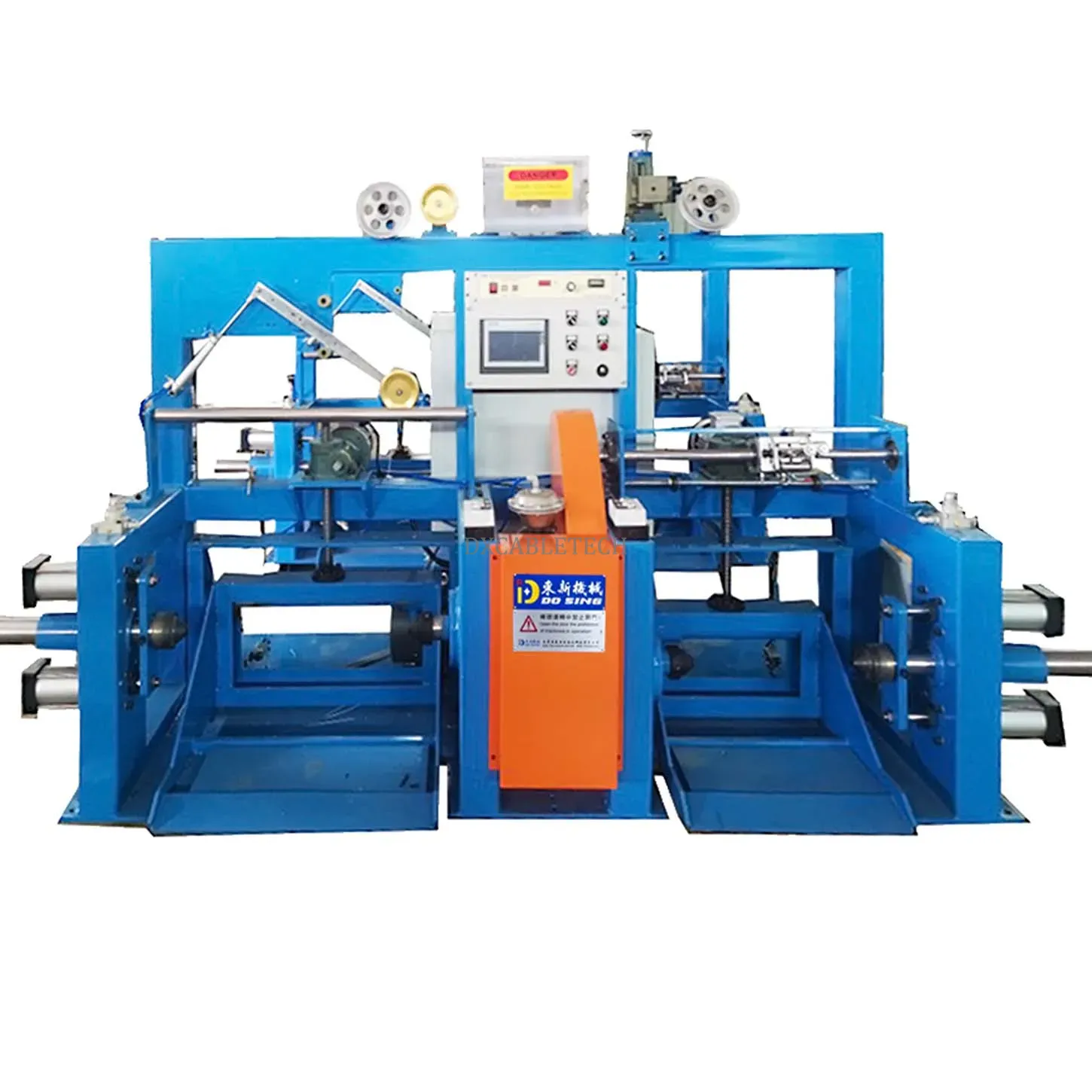

The wire rewinding machine is for rewinding the wire from bigger bobbin (ie 630mm) to a smaller bobbin(ie 400mm).
There is a spark tester in between, if spark fails, the machine will granually stop and then the machine will move
reversely and the wire goes back to spark failure part.
Applications:
Rewinding cables/wires between spools for packaging, quality control, or downstream processing
Mandatory insulation defect detection in wire/cable production lines
Recycling and reprocessing of copper/aluminum wires
Features:
Dual-Mode Rewinding: Swap spool sizes flexibly (large↔small)
Real-Time Spark Testing: Instant fault detection at adjustable voltages
Auto Fault Location: Halts + reverses to pinpoint insulation breaches
Tension Control: Prevents wire deformation during high-speed operation
Data Logging: Records test results for QA compliance (IEC 60243)
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
